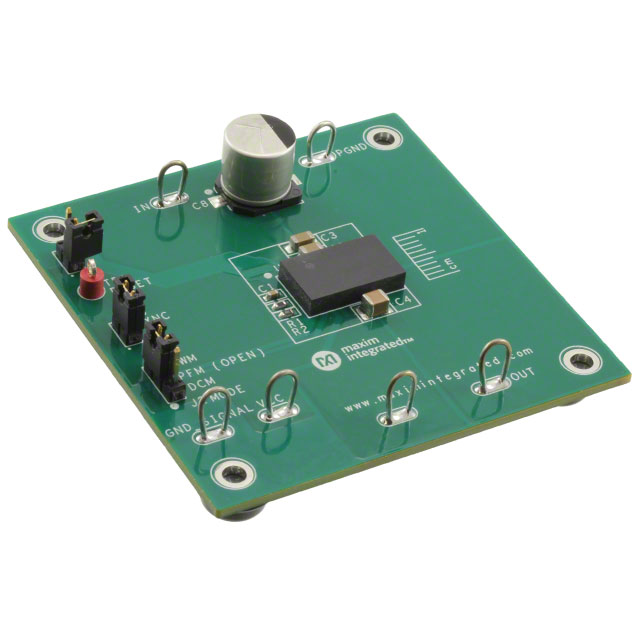

MAXM17505EVKIT#

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR MAXM17505

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR MAXM17505

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MAXM17505EVKIT#	MAXM17505 Series

Applications	-	ITE (Commercial)
Board Type	Fully Populated	Fully Populated
Contents	Board(s)	Board(s)
Current - Output	1.7 A	1.7 A
Current - Output (Max)	-	1.7 A
Features	-	OTP, UVLO, OCP
Main Purpose	DC/DC, Step Down	DC/DC, Step Down
Mounting Type	-	Surface Mount
Number of Outputs	-	1
Operating Temperature	-	125 °C
Operating Temperature	-	-40 °C
Outputs and Type	1 Non-Isolated Output, Non-Isolated	1 Non-Isolated Output, Non-Isolated
Outputs and Type	1	1
Package / Case	-	29-SMD Module, Exposed Pad
Regulator Topology	Buck	Buck
Size / Dimension	-	15 mm
Size / Dimension	-	0.11 in
Size / Dimension	-	0.59 in
Size / Dimension	-	9 mm
Size / Dimension	-	2.8 mm
Size / Dimension	-	0.35 "
Supplied Contents	Board(s)	Board(s)
Type	-	Non-Isolated PoL Module
Utilized IC / Part	MAXM17505	MAXM17505
Voltage - Input (Max)	-	60 V
Voltage - Input (Min)	-	4.5 V
Voltage - Input [Max]	60 V	60 V
Voltage - Input [Min]	4.5 V	4.5 V
Voltage - Output [Max]	12 V	12 V
Voltage - Output [Min]	0.9 V	0.9 V
Voltage - Output 1	-	0.9 V
Voltage - Output 1	-	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 41.16

DC DC CONVERTER 0.9-12V

Part	Number of Outputs	Package / Case	Applications	Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output [Min]	Voltage - Output [Max]	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output	Utilized IC / Part	Contents	Supplied Contents	Main Purpose	Outputs and Type	Outputs and Type	Regulator Topology
Analog Devices Inc./Maxim Integrated MAXM17505ALJ+	1	29-SMD Module, Exposed Pad	ITE (Commercial)	OCP, OTP, UVLO	60 V	1.7 A	0.9 V	12 V	4.5 V	125 °C	-40 °C	Non-Isolated PoL Module	Surface Mount	15 mm	0.11 in	0.59 in	9 mm	2.8 mm	0.35 "
Analog Devices Inc./Maxim Integrated MAXM17505ALJ+T	1	29-SMD Module, Exposed Pad	ITE (Commercial)	OCP, OTP, UVLO	60 V	1.7 A	0.9 V	12 V	4.5 V	125 °C	-40 °C	Non-Isolated PoL Module	Surface Mount	15 mm	0.11 in	0.59 in	9 mm	2.8 mm	0.35 "
Analog Devices Inc./Maxim Integrated MAXM17505EVKIT#																				0.9 V	12 V	Fully Populated	60 V	4.5 V	1.7 A	MAXM17505	Board(s)	Board(s)	DC/DC, Step Down	1 Non-Isolated Output, Non-Isolated	1	Buck

General part information

MAXM17505 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
