HE-024-M
ActiveTE Connectivity AMP Connectors

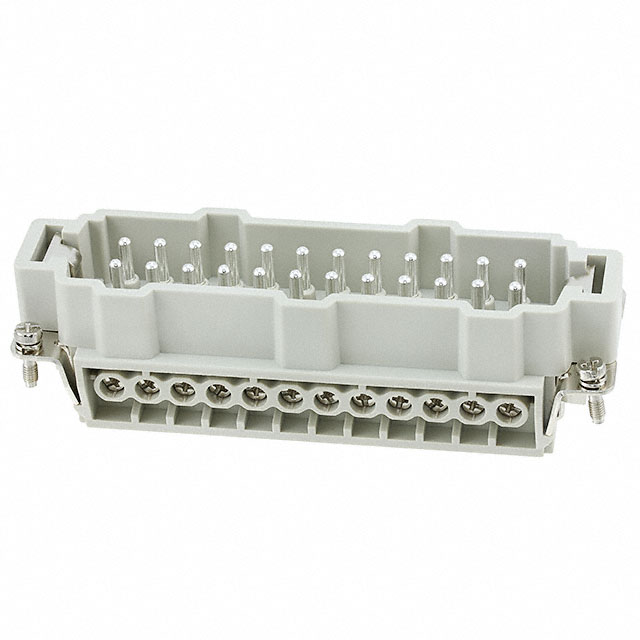

INSERT MALE 24POS SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HE-024-M
ActiveTE Connectivity AMP Connectors
INSERT MALE 24POS SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HE-024-M | HE-024 Series |
|---|---|---|
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Male | Male, Female |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | 24 | 24 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Termination Style | Screw | Tension Clamp, Screw |
| Voltage Rating | 500 V | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.89 | |
| 10 | $ 14.82 | |||
| 25 | $ 13.76 | |||
| 50 | $ 13.01 | |||
| 100 | $ 12.30 | |||
| 250 | $ 11.42 | |||
| 500 | $ 10.80 | |||
HE-024 Series
INSERT MALE 24POS CLAMP
| Part | Housing Material | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Material Flammability Rating | Current Rating (Amps) | Number of Positions | Gender |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HE-024-MS (25-48) | Polycarbonate (PC) | Tension Clamp | 125 °C | -40 °C | 500 V | UL94 V-0 | 16 A | 24 | Male |
TE Connectivity AMP Connectors HE-024-M (25-48) | Polycarbonate (PC) | Screw | 125 °C | -40 °C | 500 V | UL94 V-0 | 16 A | 24 | Male |
TE Connectivity AMP Connectors HE-024-M | Polycarbonate (PC) | Screw | 125 °C | -40 °C | 500 V | UL94 V-0 | 16 A | 24 | Male |
TE Connectivity AMP Connectors HE-024-F | Polycarbonate (PC) | Screw | 125 °C | -40 °C | 500 V | UL94 V-0 | 16 A | 24 | Female |
TE Connectivity AMP Connectors HE-024-FS (25-48) | Polycarbonate (PC) | Tension Clamp | 125 °C | -40 °C | 500 V | UL94 V-0 | 16 A | 24 | Female |
TE Connectivity AMP Connectors HE-024-MS | Polycarbonate (PC) | Tension Clamp | 125 °C | -40 °C | 500 V | UL94 V-0 | 16 A | 24 | Male |
Description
General part information
HE-024 Series
Male Insert 24 Position Screw
