Description
General part information

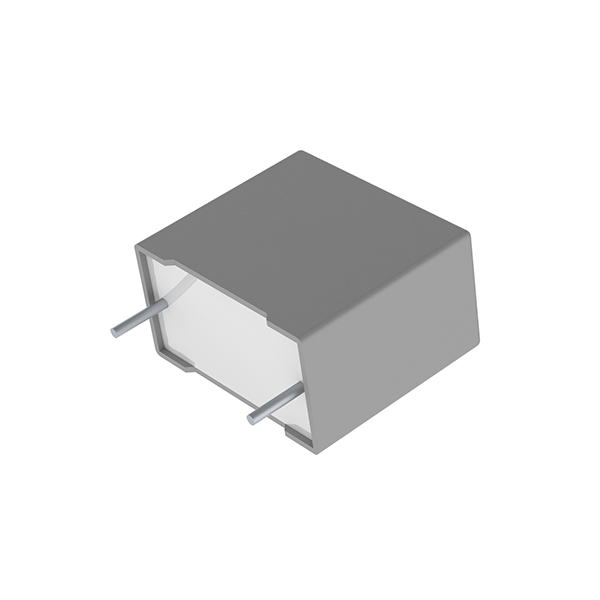

R75MR41005040K
1 µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | R75MR41005040K |
|---|---|
| Applications | High Frequency, Switching, High Pulse, DV/DT |
| Capacitance | 1 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 8 mOhm |
| Height - Seated (Max) | 0.791 in |
| Lead Spacing | 1.083 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 1.26 in |
| Size / Dimension Width | 0.433 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 220 V |
| Voltage Rating - DC | 400 V |
