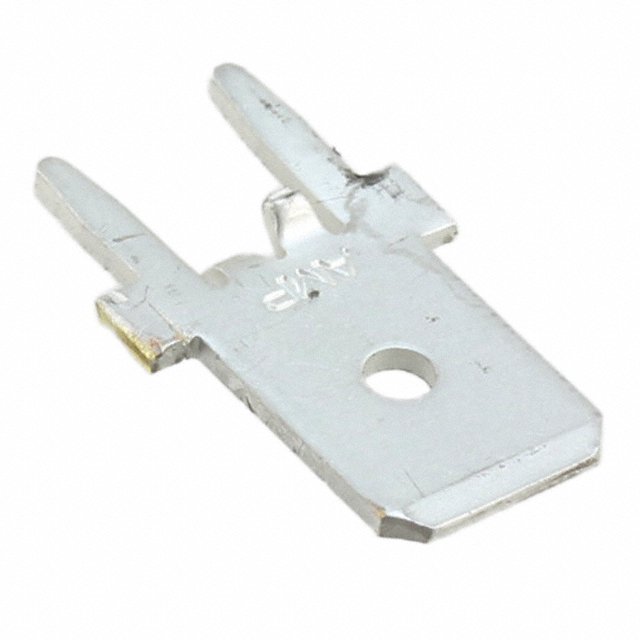

1217136-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.250 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217136-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.250 SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217136-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.582 in |
| Length - Overall [x] | 14.78 mm |
| Mounting Type | Through Hole |
| Tab Length | 7.92 mm |
| Tab Length | 0.312 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.11 | |
| 10 | $ 0.10 | |||
| 25 | $ 0.09 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.08 | |||
| 250 | $ 0.08 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.07 | |||
| 2500 | $ 0.06 | |||
| Tape & Reel (TR) | 10000 | $ 0.05 | ||
1217136 Series
CONN QC TAB 0.250 SOLDER
| Part | Termination | Gender | Tab Length | Tab Length | Mounting Type | Contact Material | Length - Overall [x] | Length - Overall [x] | Tab Thickness | Tab Thickness | Tab Width | Tab Width | Terminal Type | Insulation | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217136-1 | Solder | Male | 7.92 mm | 0.312 in | Through Hole | Brass | 0.582 in | 14.78 mm | 0.032 in | 0.81 mm | 6.35 mm | 0.25 in | Standard | Non-Insulated | Tin |
Description
General part information
1217136 Series
0.250" (6.35mm) Quick Connect Male Solder Connector Non-Insulated
