MN18E2S1W03
ActiveNKK Switches
SWITCH TOGGLE
MN18E2S1W03
ActiveNKK Switches
SWITCH TOGGLE
Description
General part information
MN18E2S1W03

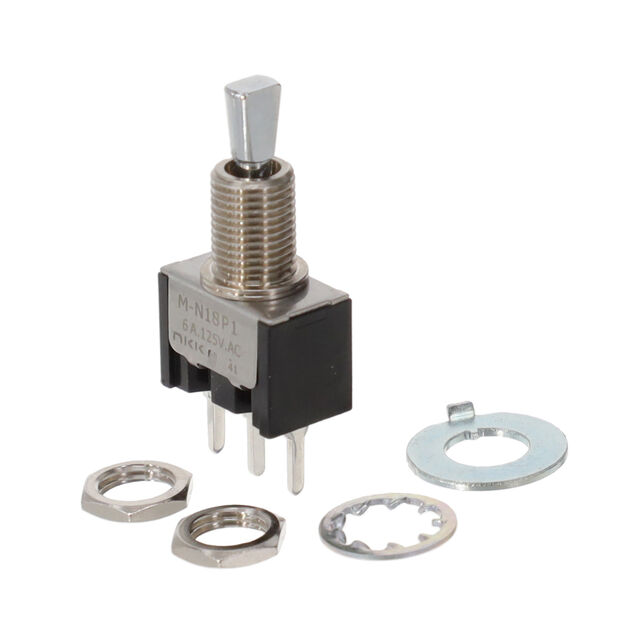

Toggle Switch SPDT Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MN18E2S1W03 |
|---|---|
| Actuator Length | 6.5 mm |
| Actuator Material | Chrome Plated, Brass |
| Actuator Type | Flatted |
| Bushing Thread | 1/4-40 |
| Circuit | SPDT |
| Current Rating | 6 A, 3 A |
| Electrical Life (Cycles) | 25000 |
| Illumination | Non-Illuminated |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Panel Cutout Diameter | 6.5 mm |
| Panel Cutout Shape | Circular |
| Switch Function | Mom-Off-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
