8457MN 008100

Active

Belden Inc.

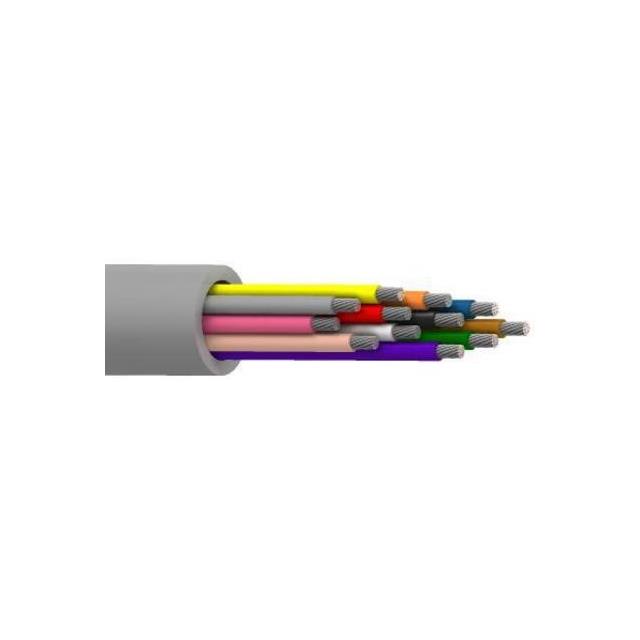

CABLE 12COND 22AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 12COND 22AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	8457MN 008100

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Jacket (Insulation) Diameter [diameter]	0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2937
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Wire Gauge	Length [x]	Length [x]	Conductor Insulation	Conductor Material	Cable Type	Conductor Strand [custom]	Conductor Strand	Number of Conductors	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Jacket (Insulation) Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Length	Length
Belden Inc. 8457MN 008100	22 AWG	30.5 m	100 ft	Polypropylene (PP)	Copper Tinned	Multi-Conductor	19 Strands	34 AWG	12	300 V	0.24 in	6.1 mm	0.406 mm	0.016 in	UL Style 2937	Poly-Vinyl Chloride (PVC)	Gray	-20 C	80 C	Audio Control Instrumentation
Belden Inc. 8457MN 0041000	22 AWG			Polypropylene (PP)	Copper Tinned	Multi-Conductor	19 Strands	34 AWG	12	300 V	0.24 in	6.1 mm	0.406 mm	0.016 in	UL Style 2937	Poly-Vinyl Chloride (PVC)	Yellow	-20 C	80 C	Audio Control Instrumentation	1000 ft	304.8 m
Belden Inc. 8457MN 0081000	22 AWG			Polypropylene (PP)	Copper Tinned	Multi-Conductor	19 Strands	34 AWG	12	300 V	0.24 in	6.1 mm	0.406 mm	0.016 in	UL Style 2937	Poly-Vinyl Chloride (PVC)	Gray	-20 C	80 C	Audio Control Instrumentation	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 3.09

General part information

12 Conductor Multi-Conductor Cable Gray 22 AWG 100.0' (30.5m)
