EKY-160ELL562MLP1S

Active

Chemi-Con

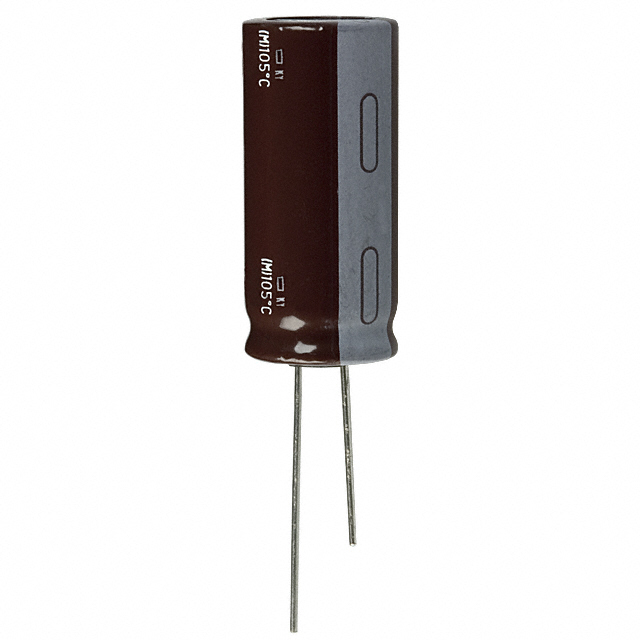

CAP ALUM 5600UF 20% 16V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-160ELL562MLP1S

Active

Chemi-Con

CAP ALUM 5600UF 20% 16V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKY-160ELL562MLP1S	EKY-160E Series

Applications	General Purpose	General Purpose
Capacitance	5.6 mF	1.5 - 4700 µF
Height - Seated (Max)	-	0.492 - 1.24 in
Height - Seated (Max)	-	1.634 - 31.5 mm
Height - Seated (Max)	-	41.5 mm
Height - Seated (Max) [Max] [z]	37 mm	13 - 37 mm
Height - Seated (Max) [Max] [z]	1.457 in	0.512 - 16.51 "
Impedance	15 mOhms	15 - 580 mOhms
Lead Spacing	7.5 mm	2 - 7.5 mm
Lead Spacing	0.295 in	0.079 - 0.295 in
Lifetime @ Temp.	10000 Hrs	5000 - 10000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	3.61 A	1.05 - 840 mA
Ripple Current @ Low Frequency	3.0685 A	1.14 - 870 mA
Size / Dimension [diameter]	0.63 in	0.197 - 0.709 "
Size / Dimension [diameter]	16 mm	5 - 18 mm
Tolerance	20 %	20 %
Voltage - Rated	16 V	16 V

EKY-160E Series

CAP ALUM 330UF 20% 16V RADIAL TH

Part	Impedance	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Package / Case	Lifetime @ Temp.	Applications	Mounting Type	Voltage - Rated	Polarization	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKY-160ELL331MHB5D	130 mOhms	320 mA	640 mA	3.5 mm	0.138 in	Radial, Can	7000 Hrs	General Purpose	Through Hole	16 V	Polar	330 µF	13 mm	0.512 "	20 %	0.315 "	8 mm	-40 °C	105 ░C
Chemi-Con EKY-160ELL562MMN3S	15 mOhms	3.5445 A		7.5 mm	0.295 in	Radial, Can	10000 Hrs	General Purpose	Through Hole	16 V	Polar	5.6 mF	33 mm	1.299 in	20 %	0.709 "	18 mm	-40 °C	105 ░C
Chemi-Con EKY-160ELL121MF11D	220 mOhms	136 mA	340 mA	2.5 mm	0.098 in	Radial, Can	5000 Hrs	General Purpose	Through Hole	16 V	Polar	120 µF			20 %	0.248 in	6.3 mm	-40 °C	105 ░C	0.492 in	12.5 mm
Chemi-Con EKY-160ELL152MK20S	35 mOhms	1.14 A		5 mm	0.197 in	Radial, Can	10000 Hrs	General Purpose	Through Hole	16 V	Polar	1.5 mF			20 %	0.492 in	12.5 mm	-40 °C	105 ░C	0.846 in	21.5 mm
Chemi-Con EKY-160ELL681MH20D	69 mOhms	630 mA	1.05 A	3.5 mm	0.138 in	Radial, Can	7000 Hrs	General Purpose	Through Hole	16 V	Polar	680 µF			20 %	0.315 "	8 mm	-40 °C	105 ░C	0.846 in	21.5 mm
Chemi-Con EKY-160ELL102MK15S	49 mOhms	870 mA	1.45 A	5 mm	0.197 in	Radial, Can	10000 Hrs	General Purpose	Through Hole	16 V	Polar	1000 µF	16.5 mm	16.51 mm	20 %	0.492 in	12.5 mm	-40 °C	105 ░C
Chemi-Con EKY-160ELL332MK35S	20 mOhms	2.16 A	2.88 A	5 mm	0.197 in	Radial, Can	10000 Hrs	General Purpose	Through Hole	16 V	Polar	3.3 mF	36.5 mm	1.437 in	20 %	0.492 in	12.5 mm	-40 °C	105 ░C
Chemi-Con EKY-160ELL472MLN3S	17 mOhms	2.9325 A	3.45 A	7.5 mm	0.295 in	Radial, Can	10000 Hrs	General Purpose	Through Hole	16 V	Polar	4700 µF	33 mm	1.299 in	20 %	0.63 in	16 mm	-40 °C	105 ░C
Chemi-Con EKY-160ELL560ME11D	580 mOhms	84 mA	210 mA	2 mm	0.079 in	Radial, Can	5000 Hrs	General Purpose	Through Hole	16 V	Polar	56 µF			20 %	0.197 "	5 mm	-40 °C	105 ░C	0.492 in	12.5 mm
Chemi-Con EKY-160EC3331MHB5D		320 mA	640 mA	3.5 mm	0.138 in	Radial, Can	7000 Hrs	General Purpose	Through Hole	16 V	Polar	330 µF	13 mm	0.512 "	20 %	0.315 "	8 mm	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.75
		10	$ 1.14
		50	$ 0.89
		100	$ 0.81
		500	$ 0.67
		1000	$ 0.62
		2500	$ 0.58
		5000	$ 0.55

Description

General part information

EKY-160E Series

5600 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
