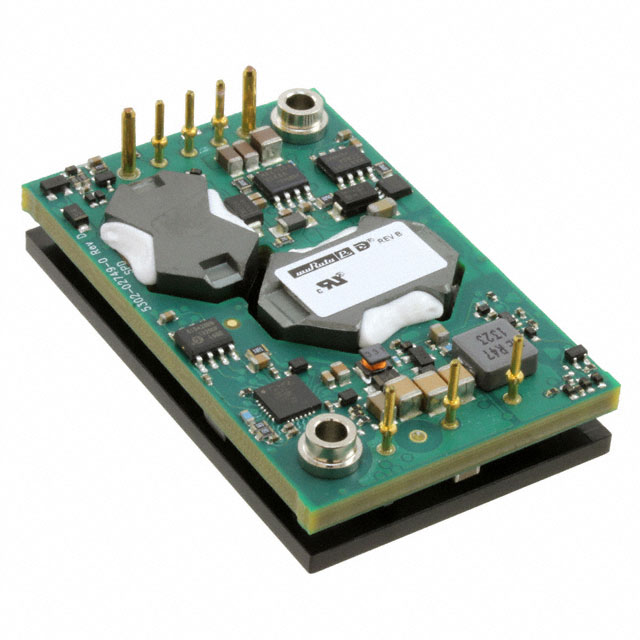

PAQ-29/5-D48NB3-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 29.8V 150W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAQ-29/5-D48NB3-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 29.8V 150W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PAQ-29/5-D48NB3-C | PAQ-29 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active Low, Enable | Active Low, Enable |
| Current - Output (Max) [Max] | 5 A | 5 A |
| Efficiency | 92.5 % | 92.5 % |
| Features | OVP, OCP, OTP, Remote On/Off | OVP, OCP, OTP, Remote On/Off |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 9-DIP Module | 9-DIP Module |
| Power (Watts) | 150 W | 150 W |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [y] | 1.45 in | 1.45 in |
| Size / Dimension [y] | 36.8 mm | 36.8 mm |
| Size / Dimension [z] | 0.46 in | 0.46 in |
| Size / Dimension [z] | 11.7 mm | 11.7 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V | 75 V |
| Voltage - Input (Min) [Min] | 36 V | 36 V |
| Voltage - Isolation | 2250 VDC | 2250 VDC |
| Voltage - Output 1 | 29.8 V | 29.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 60 | $ 69.88 | |
PAQ-29 Series
DC DC CONVERTER 29.8V 150W
| Part | Control Features | Efficiency | Type | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage - Input (Max) [Max] | Package / Case | Power (Watts) | Voltage - Isolation | Voltage - Input (Min) [Min] | Applications | Current - Output (Max) [Max] | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. PAQ-29/5-D48NB-C | Active Low, Enable | 92.5 % | Isolated Module | 1 | 85 °C | -40 °C | OCP, OTP, OVP, Remote On/Off | 75 V | 9-DIP Module | 150 W | 2250 VDC | 36 V | ITE (Commercial) | 5 A | Through Hole | 58.4 mm | 0.46 in | 2.3 in | 1.45 in | 11.7 mm | 36.8 mm | 29.8 V |
Murata Power Solutions Inc. PAQ-29/5-D48NB3-C | Active Low, Enable | 92.5 % | Isolated Module | 1 | 85 °C | -40 °C | OCP, OTP, OVP, Remote On/Off | 75 V | 9-DIP Module | 150 W | 2250 VDC | 36 V | ITE (Commercial) | 5 A | Through Hole | 58.4 mm | 0.46 in | 2.3 in | 1.45 in | 11.7 mm | 36.8 mm | 29.8 V |
Description
General part information
PAQ-29 Series
Isolated Module DC DC Converter 1 Output 29.8V 5A 36V - 75V Input
Documents
Technical documentation and resources
