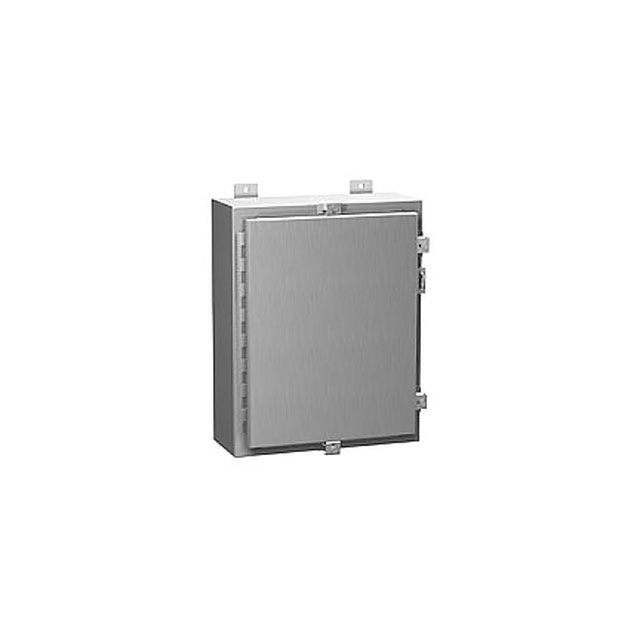

Specification	1418N4ALE6

Area (L x W)	480 in²
Color	Natural
Container Type	Box
Design	Lid, Hinged Door
Features	Interior Panels, Mounting Flange
Height	6 in
Material	Metal, Aluminum
Ratings	13, NEMA 4, UL-508, IP66, JIC EGP-1-1967, 12
Size / Dimension Length	24 in
Size / Dimension Width	20 in
Thickness	0.1 in
Weight	21 lbs

1418 Series

...

Part	Weight	Shipping Info	Container Type	Area (L x W)	Size / Dimension Length	Size / Dimension Width	Design	Material	Ratings	Color	Height	Features	Thickness	Thickness	Accessory Type	For Use With/Related Products
Hammond Manufacturing 1418N4T8	245 lbs	Drop shipped from the Manufacturer's Warehouse	Box	2160 in²	60 in	36 in	Hinged Door Lid	Metal Steel	12 13 4 IP66 NEMA 3R UL-508	Gray	8 in	Interior Panels Mounting Flange	14 Gauge	14 Gauge
Hammond Manufacturing 1418YYHHP															Rails	1418 Series
Hammond Manufacturing 1418P8	182 lbs	Drop shipped from the Manufacturer's Warehouse	Box	1512 in²	42 in	36 in	Hinged Door Lid	Metal Steel	13 IP54 NEMA 12 UL-508	Gray	8 in	Interior Panels Mounting Flange	14 Gauge	14 Gauge
Hammond Manufacturing 1418CA6	32 lbs		Box	240 in²	20 in	12 in	Hinged Door Lid	Metal Steel	13 IP54 JIC EGP-1-1967 NEMA 12 UL-508	Gray	6 in	Interior Panels Mounting Flange	14 Gauge	14 Gauge
Hammond Manufacturing 1418YW20	313 lbs	Drop shipped from the Manufacturer's Warehouse						Metal Steel		Gray		Single Access Single Door
Hammond Manufacturing 1418G8	34 lbs		Box	256 in²	16 in	16 in	Hinged Door Lid	Metal Steel	13 IP54 JIC EGP-1-1967 NEMA 12 UL-508	Gray	8 in	Interior Panels Mounting Flange	14 Gauge	14 Gauge
Hammond Manufacturing 1418ZX36	850 lbs	Drop shipped from the Manufacturer's Warehouse						Metal Steel		Gray		Dual Door Single Access
Hammond Manufacturing 1418N4SSM12	136 lbs	Drop shipped from the Manufacturer's Warehouse	Box	1080 in²	36 in	30 in	Hinged Door Lid	Metal Stainless Steel	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	Natural	12 in	Interior Panels Mounting Flange	14 Gauge	14 Gauge
Hammond Manufacturing 1418N4SSF8	72 lbs		Box	600 in²	30 in	20 in	Hinged Door Lid	Metal Stainless Steel	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	Natural	8 in	Interior Panels Mounting Flange	14 Gauge	14 Gauge
Hammond Manufacturing 1418N4S16B6	28 lbs		Box	192 in²	16 in	12 in	Hinged Door Lid	Metal Stainless Steel	12 13 4 4X IP66 JIC EGP-1-1967 NEMA 3R UL-508	Natural	6 in	Interior Panels Mounting Flange	14 Gauge	14 Gauge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Enclosure Overview
