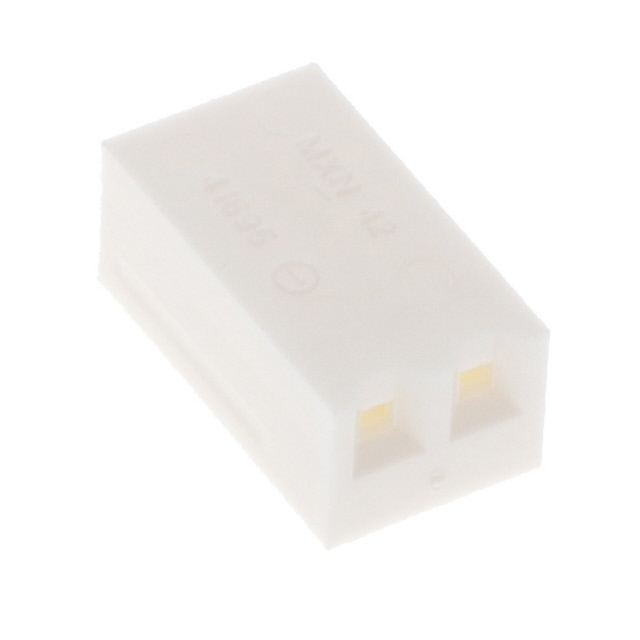

0009508020

Active

Molex

CONN RCPT HSG 2POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

0009508020

Active

Molex

CONN RCPT HSG 2POS 3.96MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.16
		10	$ 0.13
		100	$ 0.09
		1000	$ 0.07
		2500	$ 0.07

Description

General part information

000950 Series

2 Rectangular Connectors - Housings Receptacle Natural 0.156" (3.96mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0009508020	000950 Series

	-	-
Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Non-Gendered	Non-Gendered, Female Socket
Fastening Type	-	Locking Ramp, Friction Lock
Features	-	Position 2 Molded Closed, Position 5 Molded Closed, Polarizing Key, Position 2, 4 Molded Closed, Position 3 Molded Closed
Insulation Material	Polyester, Glass Filled	Polyamide (PA), Nylon, Polyester, Glass Filled, Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	2	2 - 23
Number of Positions	-	16
Number of Rows	1	1
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Pitch [x]	0.156 in	0.156 in
Pitch [x]	3.96 mm	3.96 mm

000950 Series

CONN RCPT HSG 14POS 3.96MM

Part	Note	Contact Type	Number of Rows	Mounting Type	Contact Termination	Connector Type	Insulation Material	Color	Number of Positions	Pitch [x]	Pitch [x]	Features	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0009507141	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Nylon, Polyamide (PA)	Natural	14	0.156 in	3.96 mm
Molex 0009509043	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	Natural	4	0.156 in	3.96 mm	Position 2 Molded Closed	Locking Ramp
Molex 0009509060	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	Natural	6	0.156 in	3.96 mm	Position 5 Molded Closed	Locking Ramp
Molex 0009503091	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Nylon, Polyamide (PA)	Natural	9	0.156 in	3.96 mm		Locking Ramp
Molex 0009507071	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Nylon, Polyamide (PA)	Natural	7	0.156 in	3.96 mm
Molex 0009501091	Contacts Not Included	Female Socket	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural	9	0.156 in	3.96 mm		Friction Lock	-40 °C	105 ░C
Molex 0009509063	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	Natural	6	0.156 in	3.96 mm	Position 2 Molded Closed	Locking Ramp
Molex 0009508020	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	Natural	2	0.156 in	3.96 mm
Molex 0009501033	Contacts Not Included	Female Socket	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyamide (PA66), Nylon 6/6	Natural		0.156 in	3.96 mm	Position 2 Molded Closed	Friction Lock	-40 °C	105 ░C
Molex 0009508141	Contacts Not Included	Non-Gendered	1	Free Hanging (In-Line)	Crimp	Receptacle	Polyester, Glass Filled	Natural	14	0.156 in	3.96 mm		Locking Ramp
