1318123-1
ActiveTE Connectivity AMP Connectors

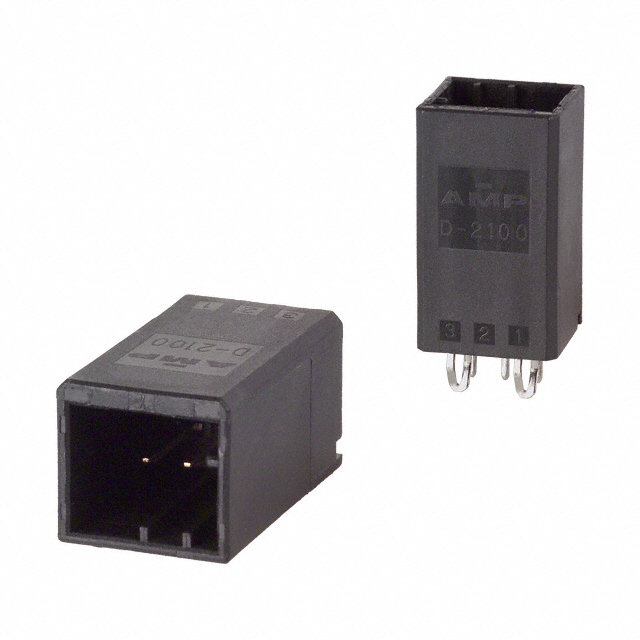

CONN HEADER VERT 3POS 2.5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1318123-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 3POS 2.5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1318123-1 | 1318123 Series |
|---|---|---|
| Applications | General Purpose, Industrial | General Purpose, Industrial |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Length - Post [x] | 0.134 in | 0.134 in |
| Contact Length - Post [x] | 3.4 mm | 3.4 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Tab | Tab |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Detent Lock | Detent Lock |
| Insulation Color | Black | Black |
| Insulation Height | 17.78 mm | 17.78 mm |
| Insulation Height | 0.7 in | 0.7 in |
| Insulation Material | Thermoplastic, Glass Filled, Polyester | Thermoplastic, Glass Filled, Polyester |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 2.5 mm | 2.5 mm |
| Pitch - Mating | 0.098 in | 0.098 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
| Voltage Rating | 250 VAC | 250 VAC |
1318123 Series
CONN HEADER VERT 3POS 2.5MM
| Part | Current Rating (Amps) | Material Flammability Rating | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Contact Shape | Contact Type | Fastening Type | Pitch - Mating | Pitch - Mating | Connector Type | Applications | Mounting Type | Contact Finish - Post | Insulation Material | Voltage Rating | Insulation Height | Insulation Height | Style | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions Loaded | Contact Material | Termination | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1318123-1 | 5 A | UL94 V-0 | 1 | 15 µin | 0.38 µm | Gold | 0.134 in | 3.4 mm | Black | Rectangular | Tab | Detent Lock | 2.5 mm | 0.098 in | Header | General Purpose, Industrial | Through Hole | Tin | Glass Filled, Polyester, Thermoplastic | 250 VAC | 17.78 mm | 0.7 in | Board to Board, Cable | 105 ░C | -55 °C | All | Copper Alloy | Solder | Shrouded - 4 Wall |
TE Connectivity AMP Connectors 1318123-2 | 5 A | UL94 V-0 | 1 | 15 µin | 0.38 µm | Gold | 0.134 in | 3.4 mm | Black | Rectangular | Tab | Detent Lock | 2.5 mm | 0.098 in | Header | General Purpose, Industrial | Through Hole | Tin | Glass Filled, Polyester, Thermoplastic | 250 VAC | 17.78 mm | 0.7 in | Board to Board, Cable | 105 ░C | -55 °C | All | Copper Alloy | Solder | Shrouded - 4 Wall |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.42 | |
| 46 | $ 1.26 | |||
| 138 | $ 1.16 | |||
| 506 | $ 1.12 | |||
Description
General part information
1318123 Series
Connector Header Through Hole 3 position 0.098" (2.50mm)
Documents
Technical documentation and resources
