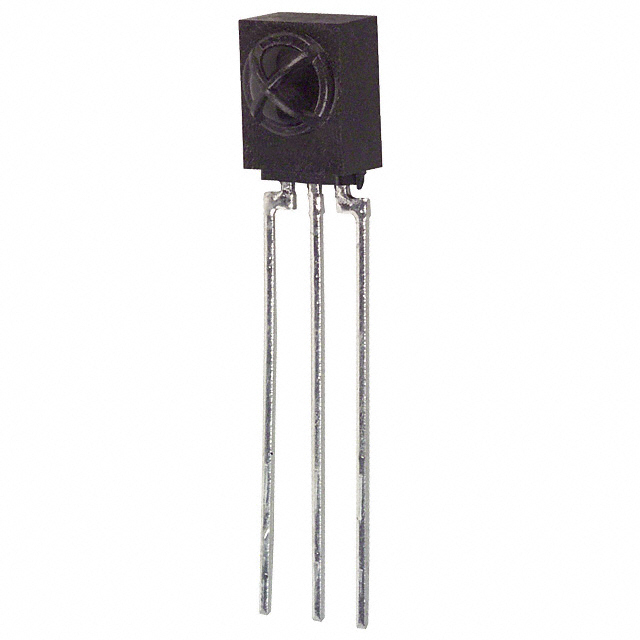

GP1UX511QS

Obsolete

SHARP/Socle Technology

SENSOR REMOTE REC 38.0KHZ 8.5M

Search across all available documentation for this part.

Obsolete

SHARP/Socle Technology

SENSOR REMOTE REC 38.0KHZ 8.5M

Technical Specifications

Parameters and characteristics for this part

Specification	GP1UX511QS

B.P.F. Center Frequency	38 kHz
Current - Supply	600 µA
Mounting Type	Through Hole
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Orientation	Side View
Sensing Distance	8.5 m
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

SENSOR REMOTE REC 38.0KHZ 8.5M

Part	Sensing Distance	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Supply	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	B.P.F. Center Frequency	Mounting Type	Orientation
SHARP/Socle Technology GP1UX511QS	8.5 m	4.5 V	5.5 V	600 µA	-10 °C	158 °F	38 kHz	Through Hole	Side View

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Remote Receiver Sensor 38.0kHz 8.5m Through Hole

Technical documentation and resources
