25-E1600-03
ActiveNTE Electronics, Inc

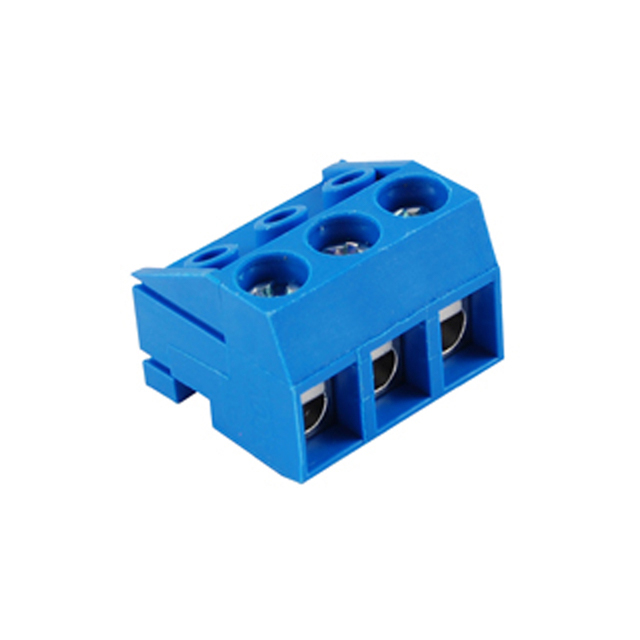

TERMINAL BLOCK EUROSTYLE
25-E1600-03
ActiveNTE Electronics, Inc
TERMINAL BLOCK EUROSTYLE
Description
General part information
25-E1600-03
3 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 180° Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | 25-E1600-03 |
|---|---|
| Color | Blue |
| Current - UL | 7 A |
| Insulation Height | 0.425 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Pitch | 0.197 in |
| Plug Wire Entry Angle | 180 ° |
| Positions Per Level | 3 |
| Screw Size | M2.5 |
| Termination Style | Screw |
| Torque - Screw | 0.31 Nm |
| Type | Plug for Unshrouded Header |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG (Max) | 22 AWG |
| Wire Gauge or Range - AWG (Min) | 14 AWG |
| Wire Strip Length (Max) | 6 mm |
| Wire Strip Length (Min) | 5 mm |
