8240 010U500

Active

Belden Inc.

#20 PE BRD FRPVC

Search across all available documentation for this part.

Active

Belden Inc.

#20 PE BRD FRPVC

Technical Specifications

Parameters and characteristics for this part

Specification	8240 010U500

Cable Group	RG-58
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	2.95 mm
Dielectric Diameter [diameter]	0.116 in
Jacket (Insulation) Diameter [diameter]	4.9 mm
Jacket (Insulation) Diameter [diameter]	0.193 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	RF Signal
Wire Gauge	20 AWG

Part	Usage	Wire Gauge	Conductor Strand	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Material	Jacket Color	Jacket (Insulation) Material	Shield Material	Shield Coverage	Cable Type	Shield Type	Cable Group	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Length [x]	Length [x]
Belden Inc. 8240 0105000	RF Signal	20 AWG	Solid	2.95 mm	0.116 in	Copper Bare	Black	Poly-Vinyl Chloride (PVC)	Copper Tinned	95 %	Coaxial	Braid	RG-58	4.9 mm	0.193 in	-40 °C	75 ░C
Belden Inc. 8240 010U1000	RF Signal	20 AWG	Solid	2.95 mm	0.116 in	Copper Bare	Black	Poly-Vinyl Chloride (PVC)	Copper Tinned	95 %	Coaxial	Braid	RG-58	4.9 mm	0.193 in	-40 °C	75 ░C	304.8 m	1000 ft
Belden Inc. 8240 010U500	RF Signal	20 AWG	Solid	2.95 mm	0.116 in	Copper Bare	Black	Poly-Vinyl Chloride (PVC)	Copper Tinned	95 %	Coaxial	Braid	RG-58	4.9 mm	0.193 in	-40 °C	75 ░C	152.4 m	6000 in
Belden Inc. 8240 010100	RF Signal	20 AWG	Solid	2.95 mm	0.116 in	Copper Bare	Black	Poly-Vinyl Chloride (PVC)	Copper Tinned	95 %	Coaxial	Braid	RG-58	4.9 mm	0.193 in	-40 °C	75 ░C			100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.06

General part information

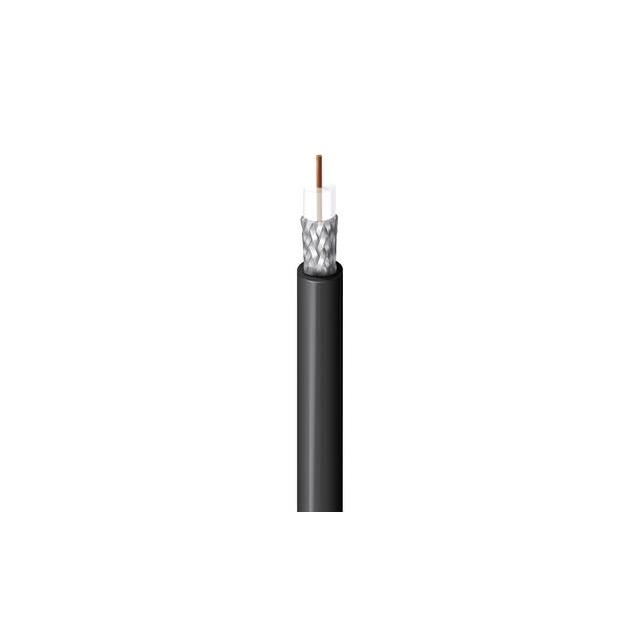

Coaxial Cable 20 AWG RG-58 500.0' (152.40m)
