ATEPR-10-RYGB-B

Active

Menics

COMPLETE UNIT MULT FLASH 4STACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATEPR-10-RYGB-B

Active

Menics

COMPLETE UNIT MULT FLASH 4STACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATEPR-10-RYGB-B	ATEPR-10 Series

Features	Pushbutton Control	Pushbutton Control, Adjustable Volume
Function - Audible	Continuous	Continuous
Function - Lighting	Steady, Flashing	Steady, Flashing
Light Color	Yellow, Red, Green, Blue	Red, Yellow, Green, Blue, Clear
Number of Stacks	4	1 - 5
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-15 °C	-15 °C
Termination Style	Cable with Connector	Cable with Connector
Type	Complete Unit	Complete Unit
Voltage - Supply	110 VAC/DC	110 VAC/DC

ATEPR-10 Series

COMPLETE UNIT RED/YL FLSH 2STACK

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Light Color	Number of Stacks	Voltage - Supply	Features	Function - Lighting	Termination Style	Function - Audible
Menics ATEPR-10-RY	-15 °C	40 °C	Complete Unit	Red, Yellow	2	110 VAC/DC	Pushbutton Control	Flashing, Steady	Cable with Connector
Menics ATEPR-10-R-B	-15 °C	40 °C	Complete Unit	Red	1	110 VAC/DC	Pushbutton Control	Flashing	Cable with Connector	Continuous
Menics ATEPR-10-RY-B	-15 °C	40 °C	Complete Unit	Red, Yellow	2	110 VAC/DC	Pushbutton Control	Flashing, Steady	Cable with Connector	Continuous
Menics ATEPR-10-RG-Z	-15 °C	40 °C	Complete Unit	Green, Red	2	110 VAC/DC	Adjustable Volume, Pushbutton Control	Flashing, Steady	Cable with Connector	Continuous
Menics ATEPR-10-RYG-Z	-15 °C	40 °C	Complete Unit	Green, Red, Yellow	3	110 VAC/DC	Adjustable Volume, Pushbutton Control	Flashing, Steady	Cable with Connector	Continuous
Menics ATEPR-10-RY-Z	-15 °C	40 °C	Complete Unit	Red, Yellow	2	110 VAC/DC	Adjustable Volume, Pushbutton Control	Flashing, Steady	Cable with Connector	Continuous
Menics ATEPR-10-RG	-15 °C	40 °C	Complete Unit	Green, Red	2	110 VAC/DC	Pushbutton Control	Flashing, Steady	Cable with Connector
Menics ATEPR-10-G	-15 °C	40 °C	Complete Unit	Green	1	110 VAC/DC	Pushbutton Control	Steady	Cable with Connector
Menics ATEPR-10-RYGB-B	-15 °C	40 °C	Complete Unit	Blue, Green, Red, Yellow	4	110 VAC/DC	Pushbutton Control	Flashing, Steady	Cable with Connector	Continuous
Menics ATEPR-10-RYG-B	-15 °C	40 °C	Complete Unit	Green, Red, Yellow	3	110 VAC/DC	Pushbutton Control	Flashing, Steady	Cable with Connector	Continuous

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 315.00

Description

General part information

ATEPR-10 Series

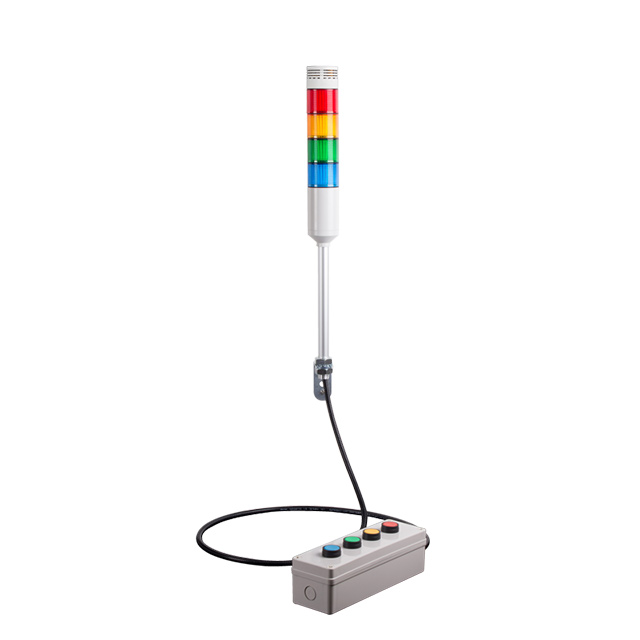

Stack Light Complete Unit Blue, Green, Red, Yellow LED Pushbutton Control Cable with Connector
