104362-6

Active

TE Connectivity AMP Connectors

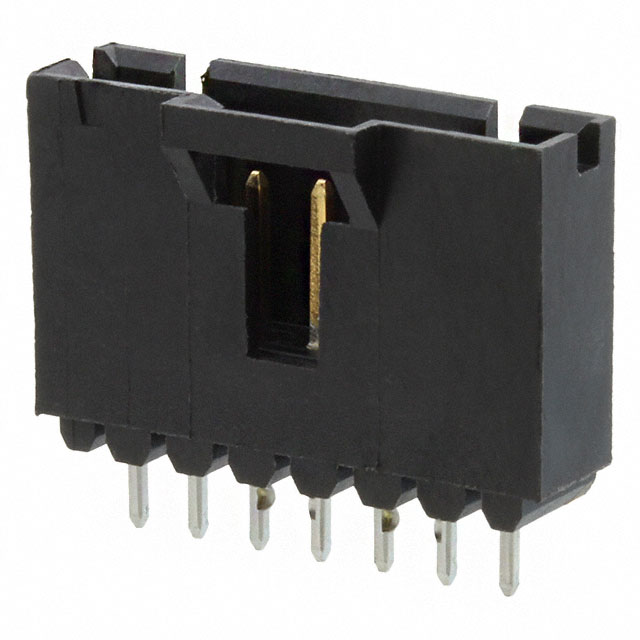

CONN HEADER VERT 7POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

104362-6

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 7POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	104362-6	104362 Series

Applications	Medical, General Purpose, Automotive, Telecommunications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	5.84 mm	5.84 mm
Contact Length - Mating [x]	0.23 in	0.23 in
Contact Length - Post	0.13 in	0.13 in
Contact Length - Post	3.3 mm	3.3 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Latch Holder	Latch Holder
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	13.6 mm	13.6 mm
Insulation Height	0.535 in	0.535 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	7	2 - 12
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Overall Contact Length	0.55 in	0.55 in
Overall Contact Length	13.97 mm	13.97 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder, Press-Fit	Solder, Press-Fit
Voltage Rating	267 V	267 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1872	$ 2.04

104362 Series

CONN HEADER VERT 10POS 2.54MM

Part	Style	Insulation Material	Mounting Type	Shrouding	Contact Length - Mating [x]	Contact Length - Mating	Termination	Features	Number of Positions	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Rows	Applications	Insulation Height	Insulation Height	Connector Type	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Finish - Post	Contact Finish - Mating	Contact Shape	Insulation Color	Overall Contact Length	Overall Contact Length	Voltage Rating
TE Connectivity AMP Connectors 104362-9	Board to Board, Cable	Thermoplastic	Through Hole	Shrouded - 4 Wall	0.23 in	5.84 mm	Press-Fit, Solder	Keying Slot	10	0.1 in	2.54 mm	UL94 V-0	All	-65 ░C	105 ░C	0.13 in	3.3 mm	3 A	15 µin	0.38 µm	Brass	1	Automotive, General Purpose, Medical, Telecommunications	13.6 mm	0.535 in	Header	Latch Holder	2.54 µm	100 µin	Male Pin	Tin-Lead	Gold	Square	Black	0.55 in	13.97 mm	267 V
TE Connectivity AMP Connectors 6-104362-1	Board to Board, Cable	Thermoplastic	Through Hole	Shrouded - 4 Wall	0.23 in	5.84 mm	Press-Fit, Solder	Keying Slot	12	0.1 in	2.54 mm	UL94 V-0	All	-65 ░C	105 ░C	0.13 in	3.3 mm	3 A	15 µin	0.38 µm	Brass	1	Automotive, General Purpose, Medical, Telecommunications	13.6 mm	0.535 in	Header	Latch Holder	2.54 µm	100 µin	Male Pin	Tin	Gold	Square	Black	0.55 in	13.97 mm	267 V
TE Connectivity AMP Connectors 5-104362-3	Board to Board, Cable	Thermoplastic	Through Hole	Shrouded - 4 Wall	0.23 in	5.84 mm	Press-Fit, Solder	Keying Slot	4	0.1 in	2.54 mm	UL94 V-0	All	-65 ░C	105 ░C	0.13 in	3.3 mm	3 A	15 µin	0.38 µm	Brass	1	Automotive, General Purpose, Medical, Telecommunications	13.6 mm	0.535 in	Header	Latch Holder	2.54 µm	100 µin	Male Pin	Tin	Gold	Square	Black	0.55 in	13.97 mm	267 V
TE Connectivity AMP Connectors 5-104362-5	Board to Board, Cable	Thermoplastic	Through Hole	Shrouded - 4 Wall	0.23 in	5.84 mm	Press-Fit, Solder	Keying Slot	6	0.1 in	2.54 mm	UL94 V-0	All	-65 ░C	105 ░C	0.13 in	3.3 mm	3 A	15 µin	0.38 µm	Brass	1	Automotive, General Purpose, Medical, Telecommunications	13.6 mm	0.535 in	Header	Latch Holder	2.54 µm	100 µin	Male Pin	Tin	Gold	Square	Black	0.55 in	13.97 mm	267 V
TE Connectivity AMP Connectors 104362-6	Board to Board, Cable	Thermoplastic	Through Hole	Shrouded - 4 Wall	0.23 in	5.84 mm	Press-Fit, Solder	Keying Slot	7	0.1 in	2.54 mm	UL94 V-0	All	-65 ░C	105 ░C	0.13 in	3.3 mm	3 A	15 µin	0.38 µm	Brass	1	Automotive, General Purpose, Medical, Telecommunications	13.6 mm	0.535 in	Header	Latch Holder	2.54 µm	100 µin	Male Pin	Tin-Lead	Gold	Square	Black	0.55 in	13.97 mm	267 V
TE Connectivity AMP Connectors 5-104362-4	Board to Board, Cable	Thermoplastic	Through Hole	Shrouded - 4 Wall	0.23 in	5.84 mm	Press-Fit, Solder	Keying Slot		0.1 in	2.54 mm	UL94 V-0	All	-65 ░C	105 ░C	0.13 in	3.3 mm	3 A	15 µin	0.38 µm	Brass	1	Automotive, General Purpose, Medical, Telecommunications	13.6 mm	0.535 in	Header	Latch Holder	2.54 µm	100 µin	Male Pin	Tin	Gold	Square	Black	0.55 in	13.97 mm	267 V
TE Connectivity AMP Connectors 5-104362-1	Board to Board, Cable	Thermoplastic	Through Hole	Shrouded - 4 Wall	0.23 in	5.84 mm	Press-Fit, Solder	Keying Slot	2	0.1 in	2.54 mm	UL94 V-0	All	-65 ░C	105 ░C	0.13 in	3.3 mm	3 A	15 µin	0.38 µm	Brass	1	Automotive, General Purpose, Medical, Telecommunications	13.6 mm	0.535 in	Header	Latch Holder	2.54 µm	100 µin	Male Pin	Tin	Gold	Square	Black	0.55 in	13.97 mm	267 V
TE Connectivity AMP Connectors 5-104362-8	Board to Board, Cable	Thermoplastic	Through Hole	Shrouded - 4 Wall	0.23 in	5.84 mm	Press-Fit, Solder	Keying Slot	9	0.1 in	2.54 mm	UL94 V-0	All	-65 ░C	105 ░C	0.13 in	3.3 mm	3 A	15 µin	0.38 µm	Brass	1	Automotive, General Purpose, Medical, Telecommunications	13.6 mm	0.535 in	Header	Latch Holder	2.54 µm	100 µin	Male Pin	Tin	Gold	Square	Black	0.55 in	13.97 mm	267 V
TE Connectivity AMP Connectors 5-104362-9	Board to Board, Cable	Thermoplastic	Through Hole	Shrouded - 4 Wall	0.23 in	5.84 mm	Press-Fit, Solder	Keying Slot	10	0.1 in	2.54 mm	UL94 V-0	All	-65 ░C	105 ░C	0.13 in	3.3 mm	3 A	15 µin	0.38 µm	Brass	1	Automotive, General Purpose, Medical, Telecommunications	13.6 mm	0.535 in	Header	Latch Holder	2.54 µm	100 µin	Male Pin	Tin	Gold	Square	Black	0.55 in	13.97 mm	267 V

Description

General part information

104362 Series

Connector Header Through Hole 7 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
