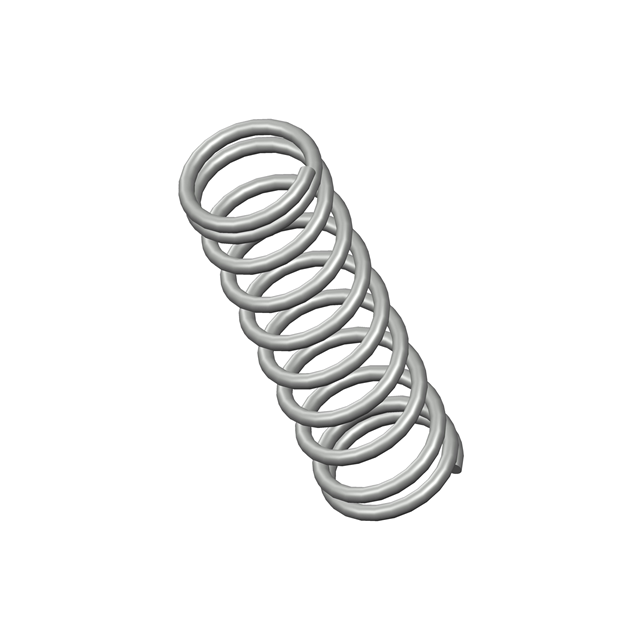

3677CS
ActiveCentury Spring Corp
COMP O= .375,L= 1.25,W= .041
3677CS
ActiveCentury Spring Corp
COMP O= .375,L= 1.25,W= .041
Description
General part information
3677CS
COMP O= .375,L= 1.25,W= .041
Technical Specifications
Parameters and characteristics for this part
| Specification | 3677CS |
|---|---|
| Diameter - Inside | 0.293 in |
| Diameter - Outside | 0.375 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 1.25 in |
| Material | Spring Steel |
| Rate (lbs/in) | 14 lbs/in |
| Type | Compression |
| Wire Diameter | 0.041 in |
