PF0581.473NL
ActivePulse Electronics
FIXED IND 47UH 1.1A 166 MOHM SMD
PF0581.473NL
ActivePulse Electronics
FIXED IND 47UH 1.1A 166 MOHM SMD
Description
General part information
PF0581.473NL

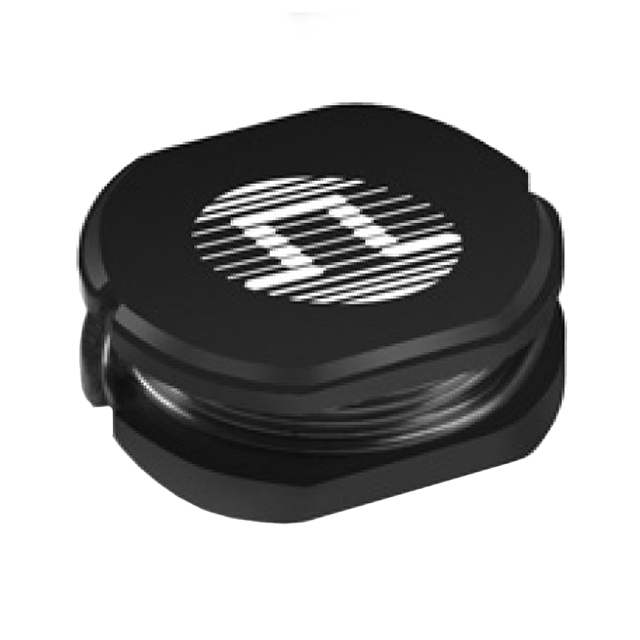

47 µH Unshielded Wirewound Inductor 1.1 A 166mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PF0581.473NL |
|---|---|
| Current - Saturation (Isat) | 1.1 A |
| Current Rating | 1.1 A |
| DC Resistance (DCR) (Max) | 166 mOhm |
| Height - Seated (Max) | 0.174 in |
| Inductance | 47 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.406 in |
| Size / Dimension Width | 0.367 in |
| Tolerance | 10 % |
| Type | Wirewound |
