1411138

Active

Phoenix Contact

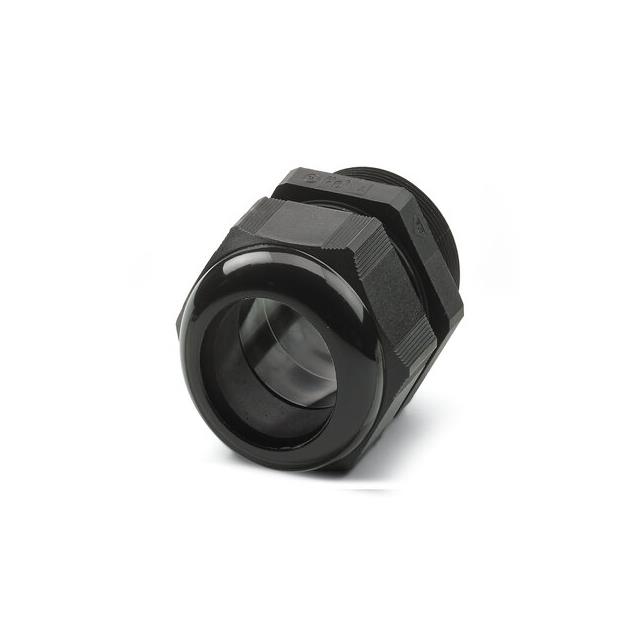

CABLE GLAND 30-36MM M50 POLYAMID

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 30-36MM M50 POLYAMID

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.11

General part information

Cable Gland Polyamide (PA), Nylon M50 Black

Technical documentation and resources

Specification	1411138	G-INS-M50 Series

Color	Black	Silver, Black
Includes	Seal	O-Ring, Seal
Ingress Protection	IP66/IP68	IP66, IP68, IP69, IP66/IP68
Material	Polyamide (PA), Nylon	Brass, Nickel Plated, Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max]	1.417 in	1.26 - 1.417 in
Outside Cable Diameter (Max) [Max]	36 mm	32 - 36 mm
Outside Cable Diameter (Min) [Min] [diameter]	1.181 in	0.866 - 1.181 in
Outside Cable Diameter (Min) [Min] [diameter]	30 mm	22 - 30 mm
Thread Length	0.709 in	0.354 - 0.709 in
Thread Length	18.01 mm	9 - 18.01 mm
Thread Size	M50	M50x1.5, M50
Type	Cable Gland	Cable Gland

Part	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Material	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Includes	Color	Ingress Protection
Phoenix Contact 1424530	32 mm	1.26 in	0.354 in	9 mm	22 mm	0.866 in	Cable Gland	Brass, Nickel Plated	100 °C	-40 °C	M50x1.5	O-Ring, Seal	Silver	IP66, IP68, IP69
Phoenix Contact 1411138	36 mm	1.417 in	0.709 in	18.01 mm	30 mm	1.181 in	Cable Gland	Polyamide (PA), Nylon	100 °C	-40 °C	M50	Seal	Black	IP66/IP68
