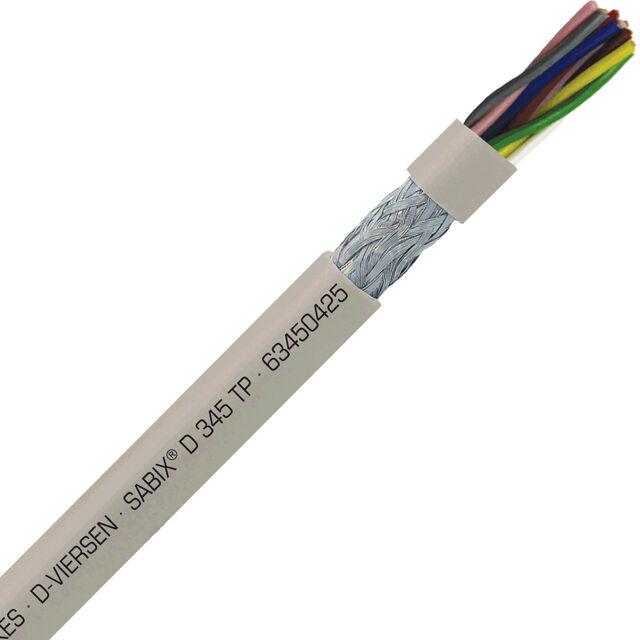

Specification	63450425

Cable Type	Multi-Pair
Conductor Arrangement	Twisted
Conductor Insulation	Sabix®
Conductor Material	Copper, Bare
Conductor Strand Count	14
Conductor Strand Gauge	34 AWG
Features	Halogen-Free, Flame Retardant, Low Smoke
Jacket (Insulation) Diameter	0.283 in
Jacket (Insulation) Material	Sabix®
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	8
Number of Conductors - Pair	4
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shield Material	Copper, Tinned
Shield Type	Braid, Foil
Usage	Industrial, Signal, Control
Voltage	500 V
Wire Gauge	24 AWG
