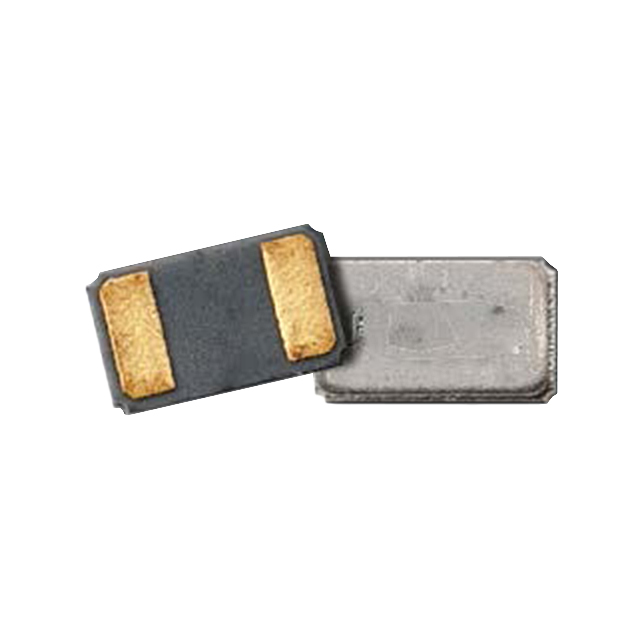

ABS06W-32.768KHZ-K-1-T
ObsoleteAbracon LLC
CRYSTAL 32.7680KHZ 3PF SMD
ABS06W-32.768KHZ-K-1-T
ObsoleteAbracon LLC
CRYSTAL 32.7680KHZ 3PF SMD
Description
General part information
ABS06W-32.768KHZ-K-1-T
32.768 kHz ±10ppm Crystal 3pF 100 kOhms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ABS06W-32.768KHZ-K-1-T |
|---|---|
| ESR (Equivalent Series Resistance) | 100 kOhm |
| Frequency | 0.032768 MHz |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.024 in |
| Load Capacitance | 3 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | No Lead, 2-SMD |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.047 in |
| Type | kHz Crystal (Tuning Fork) |
