2JQ 500-R
ObsoleteBel Fuse Inc.
FUSE GLASS 500MA 350VAC 140VDC
2JQ 500-R
ObsoleteBel Fuse Inc.
FUSE GLASS 500MA 350VAC 140VDC
Description
General part information
2JQ 500-R

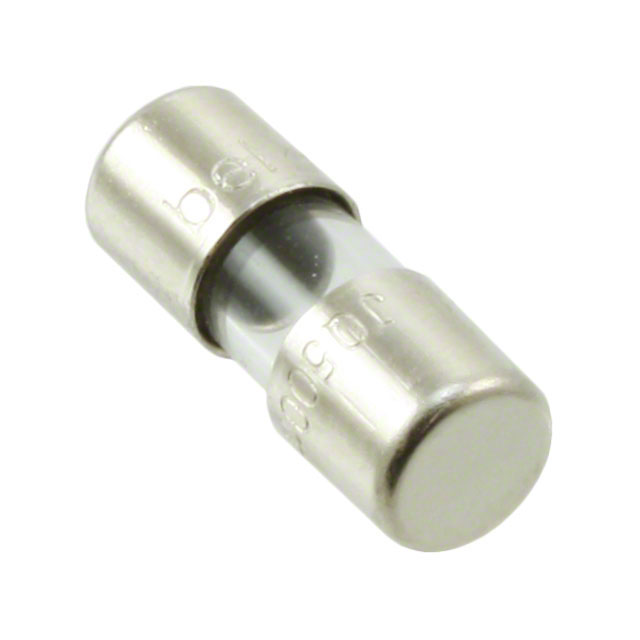

500 mA 350 V AC 140 V DC Fuse Cartridge, Glass Requires Holder 2AG, 5mm x 15mm
Technical Specifications
Parameters and characteristics for this part
| Specification | 2JQ 500-R |
|---|---|
| Approval Agency | cURus, CSA |
| Breaking Capacity (AC) | 100 A |
| Breaking Capacity (DC) | 150 A |
| Current Rating | 0.5 A |
| DC Cold Resistance | 0.33 Ohms |
| Fuse Type | Cartridge, Glass |
| Melting I²t | 0.1 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 5mm x 15mm, 2AG |
| Package Diameter | 5 mm |
| Package Length | 5 mm |
| Package Name | 2AG |
| Package Width | 15 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.201 in |
| Size / Dimension Length | 0.543 in |
| Voltage Rating - AC | 350 VAC |
| Voltage Rating - DC | 140 V |
