1003-005-22100

Obsolete

CnC Tech, LLC

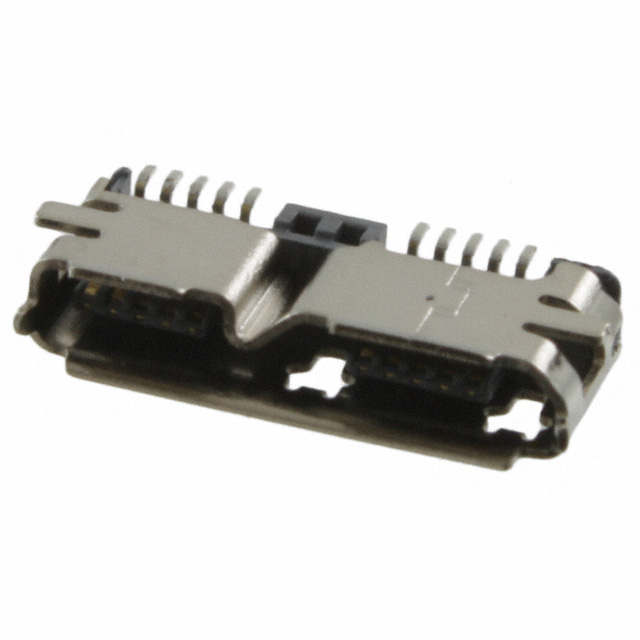

CONN RCPT USB3.0 MICRO B SMD R/A

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CONN RCPT USB3.0 MICRO B SMD R/A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1003-005-22100	1003-005 Series

Connector Type	USB - micro B	USB - micro B, USB - micro AB
Contact Finish	Gold	Gold
Current Rating (Amps)	-	0.25 - 1.8 A
Features	Solder Retention	Solder Retention
Gender	Receptacle	Receptacle
Insulation Color	Black	Black
Material Flammability Rating	-	UL94 V-0
Mounting Feature	Horizontal	Horizontal
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Contacts	10	10
Number of Ports	1	1
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Shell/Shielding Material	-	Brass
Shielding	-	Unshielded
Termination	Solder	Solder

USB 3.0 MICRO B SMD TYPE 15U''

Part	Contact Finish	Number of Ports	Shell/Shielding Material	Termination	Gender	Mounting Feature	Connector Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shielding	Mounting Type	Number of Contacts	Insulation Color	Features
CnC Tech, LLC 1003-005-22100-TR	Gold	1	Brass	Solder	Receptacle	Horizontal	USB - micro B	UL94 V-0	-40 °C	105 ░C	0.25 A, 1.8 A	Unshielded	Surface Mount, Right Angle	10	Black
CnC Tech, LLC 1003-005-23100-TR	Gold	1	Brass	Solder	Receptacle	Horizontal	USB - micro B	UL94 V-0	-40 °C	105 ░C	0.25 A, 1.8 A	Unshielded	Surface Mount, Right Angle	10	Black
CnC Tech, LLC 1003-005-23100	Gold	1		Solder	Receptacle	Horizontal	USB - micro AB						Surface Mount, Right Angle	10	Black	Solder Retention
CnC Tech, LLC 1003-005-22100	Gold	1		Solder	Receptacle	Horizontal	USB - micro B						Surface Mount, Right Angle	10	Black	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 10 Position Surface Mount, Right Angle
