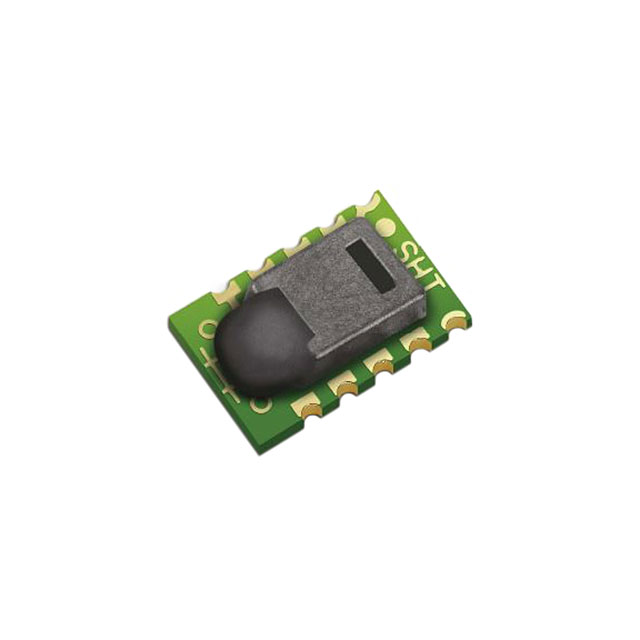

SHT10
ObsoleteSensirion AG
SENSOR HUMI/TEMP 5V DTL 4.5% SMD
SHT10
ObsoleteSensirion AG
SENSOR HUMI/TEMP 5V DTL 4.5% SMD
Description
General part information
SHT10
Humidity, Temperature 0 ~ 100% RH Digital ±4.5% RH 8 s Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | SHT10 |
|---|---|
| Accuracy | 4.5 % |
| Humidity Range (Maximum) | 100 % RH |
| Humidity Range (Minimum) | 0 % RH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 123 °C |
| Operating Temperature (Min) | -40 °C |
| Output Bits | 12 b |
| Output Type | Digital |
| Package / Case | 10-SMD Module |
| Package Name | 10-LCC |
| Response Time | 8 s |
| Sensor Type | Temperature, Humidity |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 2.4 V |
