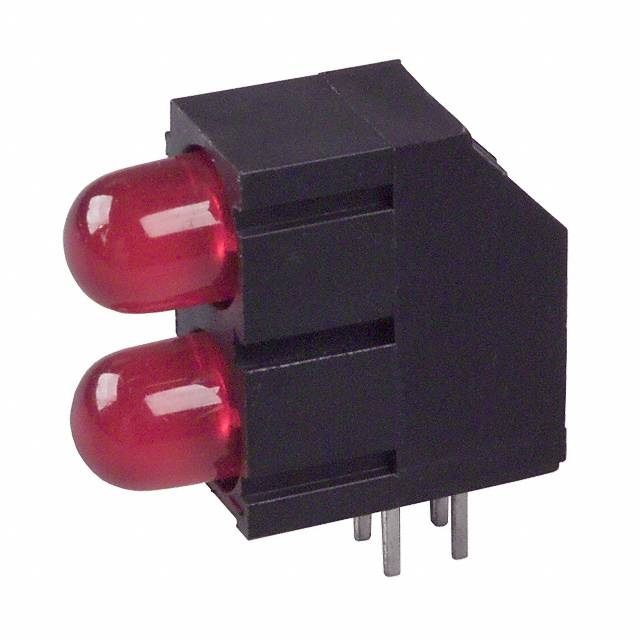

SSF-LXHM250IID

Active

Lumex Opto/Components Inc.

LED CBI 5MM BI-LVL RED RA PC MNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXHM250IID

Active

Lumex Opto/Components Inc.

LED CBI 5MM BI-LVL RED RA PC MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXHM250IID	SSF-LXHM250 Series

Color	Red	Green (x 2), Red, Green
Configuration	2 High	2 High
Lens Size	T-1 3/4	T-1 3/4
Lens Size	5 mm	5 mm
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused, White
Millicandela Rating	40 mcd	30 - 40 mcd
Millicandela Rating	-	25 mcd
Millicandela Rating	-	30 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	2 V	2 - 2.2 V
Wavelength - Peak	635 nm	565 - 635 nm

SSF-LXHM250 Series

LED CBI 5MM BI-LVL GREEN RA

Part	Millicandela Rating	Lens Type	Lens Size	Lens Size	Lens Style	Configuration	Viewing Angle	Color	Wavelength - Peak	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage Rating
Lumex Opto/Components Inc. SSF-LXHM250GGD	30 mcd	Diffused, Tinted	T-1 3/4	5 mm	Round with Domed Top	2 High	60 °	Green (x 2)	565 nm	Through Hole, Right Angle
Lumex Opto/Components Inc. SSF-LXHM250IGIGW		Diffused, White	T-1 3/4	5 mm	Round with Domed Top	2 High	60 °	Green, Red	565 nm, 635 nm	Through Hole, Right Angle	25 mcd	30 mcd	2 V, 2.2 V
Lumex Opto/Components Inc. SSF-LXHM250IID	40 mcd	Diffused, Tinted	T-1 3/4	5 mm	Round with Domed Top	2 High	60 °	Red	635 nm	Through Hole, Right Angle			2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.26
		10	$ 0.80
		250	$ 0.59
		500	$ 0.54
		1000	$ 0.45
		2000	$ 0.42
		5000	$ 0.41
		10000	$ 0.41
		25000	$ 0.40

Description

General part information

SSF-LXHM250 Series

LED Circuit Board Indicator LED Circuit Board Indicator 2 High Red (x 2) Diffused, Tinted 2V 20mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
