1-1337629-0

Active

TE Connectivity AMP Connectors

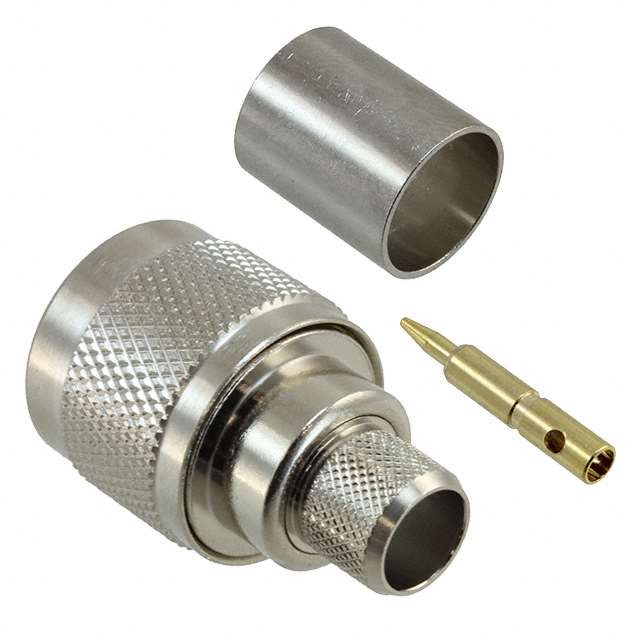

CONN N PLUG STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN N PLUG STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337629-0

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-8A, 213
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1000 VDC

CONN N PLUG STR 50 OHM SOLDER

Part	Contact Termination	Shield Termination	Mating Cycles	Impedance	Number of Ports	Body Material	Includes	Connector Type	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Center Contact Plating	Voltage Rating	Dielectric Material	Housing Color	Connector Style	Mounting Type	Cable Group	Center Contact Material	Insertion Loss
TE Connectivity AMP Connectors 1-1337629-0	Solder	Crimp	500	50 Ohms	1	Brass	1 Connector, 1 Contact, 1 Ferrule	Male Pin, Plug	11 GHz	-65 ░C	165 °C	Nickel	Gold	1000 VDC	Polytetrafluoroethylene (PTFE)	Silver	N Type	Free Hanging (In-Line)	213, RG-8A	Brass	0.3 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 5.02

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
