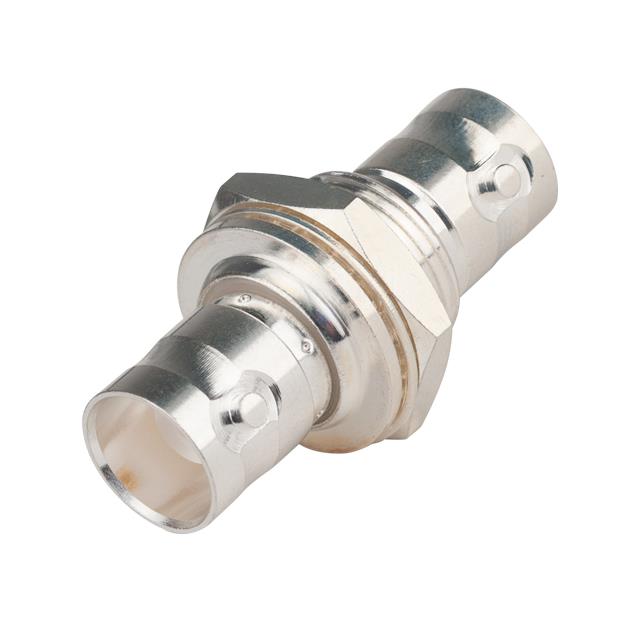

RFB-1135-I
ActiveRF Industries
BNC FEMALE-BNC FEMALE; BH
Deep-Dive with AI
Search across all available documentation for this part.
RFB-1135-I
ActiveRF Industries
BNC FEMALE-BNC FEMALE; BH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RFB-1135-I |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Body Finish | Silver |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Impedance | 50 Ohms |
| Mounting Feature | Bulkhead |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 9.30 | |
| 50 | $ 9.10 | |||
| 100 | $ 8.90 | |||
Description
General part information
RFB-1135-I
Adapter Coaxial Connector BNC Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
Documents
Technical documentation and resources
No documents available
