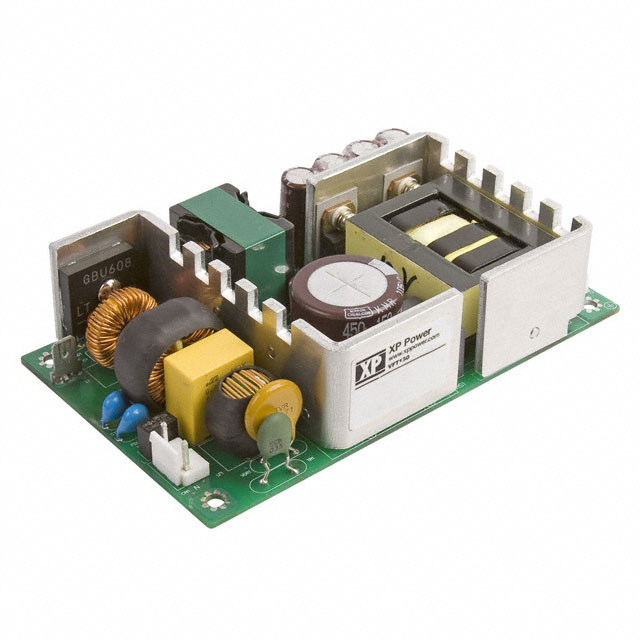

VFT150PS15

Active

XP Power

AC/DC CONVERTER 15V 150W

Search across all available documentation for this part.

Active

XP Power

AC/DC CONVERTER 15V 150W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VFT150PS15	VFT150 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output 1	6.66 A	6.66 - 24 A
Efficiency	87 %	83 - 87 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	150 W	150 W
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	33 mm	33 mm
Size / Dimension [z]	1.3 "	1.3 "
Standard Number	62368-1	62368-1
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	15 V	5 - 15 V

AC/DC OPEN FRAME POWER SUPPLY (PSU), ITE, 1 OUTPUT, 120W @ 15CFM, 80 W, 90V AC TO 264V AC, FIXED

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Mounting Type	Current - Output 1	Applications	Number of Outputs	Efficiency	Voltage - Isolation	Power (Watts)	Voltage - Output 1	Type	Minimum Load Required	Features
XP Power VFT150PS05	-10 °C	70 °C	3 "	127 mm	76.2 mm	33 mm	5 in	1.3 "	90 VAC	264 VAC	62368-1	Chassis Mount	24 A	ITE (Commercial)	1	83 %	3000 V	150 W	5 V	Open Frame		Adjustable Output, Remote Sense, Universal Input
XP Power VFT150PS15	-10 °C	70 °C	3 "	127 mm	76.2 mm	33 mm	5 in	1.3 "	90 VAC	264 VAC	62368-1	Chassis Mount	6.66 A	ITE (Commercial)	1	87 %	3000 V	150 W	15 V	Open Frame		Adjustable Output, Remote Sense, Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1000	$ 60.43

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input
