WFI32E01PE-I

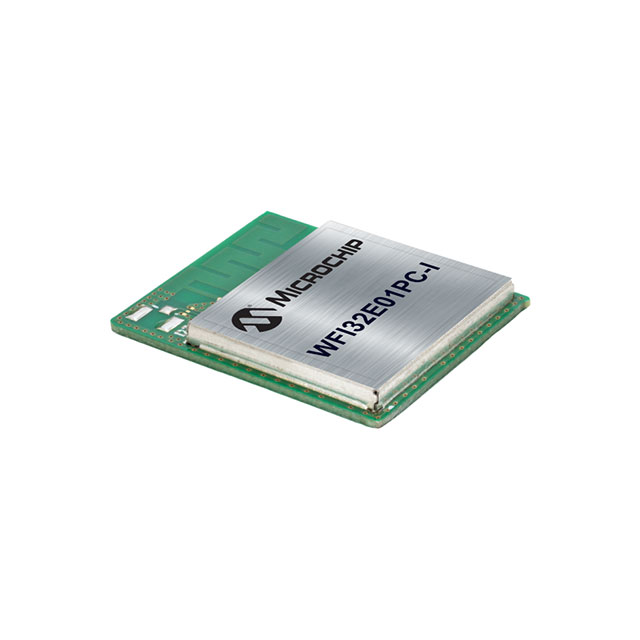

ActiveTHE MICROCHIP WFI32E01PC IS A STANDALONE AND FULLY CERTIFIED WI-FI MODULE SUPPORTING 2.4 GHZ 802.11 B/G/N RADIO MODES.
Deep-Dive with AI
Search across all available documentation for this part.
WFI32E01PE-I
ActiveTHE MICROCHIP WFI32E01PC IS A STANDALONE AND FULLY CERTIFIED WI-FI MODULE SUPPORTING 2.4 GHZ 802.11 B/G/N RADIO MODES.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | WFI32E01PE-I | WFI32E01PE Series |
|---|---|---|
| - | - | |
| Antenna Type | PCB Trace | PCB Trace |
| Data Rate | 54 Mbps | 54 Mbps |
| Frequency [Max] | 2.4835 GHz | 2.4835 GHz |
| Frequency [Min] | 2.4 GHz | 2.4 GHz |
| Memory Size | 1 MB, 256 kB | 1 - 256 MB |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 54-SMD Module | 54-SMD Module |
| Power - Output | 20.5 dBm | 20.5 dBm |
| Protocol | 802.11b/g/n | 802.11b/g/n |
| RF Family/Standard | WiFi | WiFi |
| Sensitivity | -99 dBm | -99 dBm |
| Serial Interfaces | USB, I2C, UART, JTAG, SPI | USB, I2C, UART, JTAG, SPI |
| Utilized IC / Part | WFI32E01 | WFI32E01 |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 3 V | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 4.38 | |
| Digikey | Tray | 1 | $ 9.41 | |
| 100 | $ 8.82 | |||
| Microchip Direct | TRAY | 1 | $ 9.41 | |
| 100 | $ 8.82 | |||
| 1000 | $ 8.08 | |||
| 5000 | $ 7.72 | |||
WFI32E01PE Series
Global Regulatory Certified RF Ready Wi-Fi® MCU Module With PCB Antenna
| Part | Power - Output | Antenna Type | RF Family/Standard | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Sensitivity | Voltage - Supply [Max] | Voltage - Supply [Min] | Utilized IC / Part | Package / Case | Protocol | Data Rate | Frequency [Min] | Frequency [Max] | Memory Size | Serial Interfaces |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology WFI32E01PE-I | |||||||||||||||||
Microchip Technology WFI32E01PE-I | 20.5 dBm | PCB Trace | WiFi | 85 °C | -40 °C | Surface Mount | -99 dBm | 3.6 V | 3 V | WFI32E01 | 54-SMD Module | 802.11b/g/n | 54 Mbps | 2.4 GHz | 2.4835 GHz | 1 MB, 256 kB | I2C, JTAG, SPI, UART, USB |
Description
General part information
WFI32E01PE Series
WFI32E01PE is a standalone and fully certified Wi-Fi module supporting 2.4 GHz 802.11 b/g/n radio modes. Specially designed for industrial IoT applications, WFI32E01PE contains the PIC32MZW1 series Wi-Fi SoC, which is a 200MHz high performance MCU with industrial leading Wi-Fi connectivity and rich peripheral options. PIC32MZW1 has 1MB embedded flash and 256KB SRAM, empowering embedded designers to rapidly build complex IoT software covering WLAN, TCP/IP stack, RTOS, Cloud connectivity, and application. Various types of peripherals, such as Ethernet, USB, ADC, CVD touch buttons, and CAN, make PIC32MZW1 a perfect system core to realize the most application features.
WFI32E01PE has best-in-class WLAN functions covering the latest Wi-Fi security standard, Wi-Fi Protected Access 3 (WPA3) and all the general Wi-Fi functions like AP, STA, SoftAP with 8 connected STAs, TLS, etc. The software development of WFI32E01 module is supported in [Microchip MPLAB](https://www.microchip.com/mplab/mplab-x-ide) and [Microchip Harmony v3](https://www.microchip.com/mplab/mplab-harmony).
Microchip provides total 4 module variants under the same product family, visit the design center of [**PIC32MZ-W1 Wi-Fi® SoC and Module Family**](https://www.microchip.com/design-centers/wireless-connectivity/embedded-wi-fi/pic32mz-w1) for more details.
