Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 171.10 | |
| 10 | $ 157.41 | |||
| 50 | $ 145.44 | |||
General part information

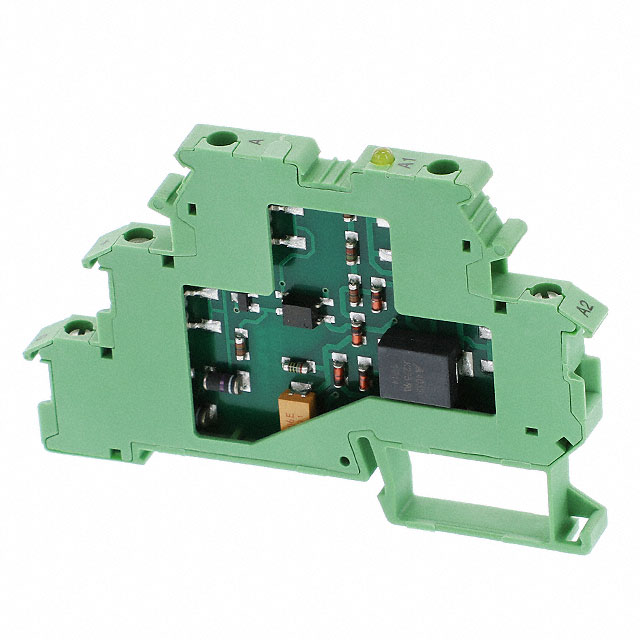

Solid State SPST-NO (1 Form A) Module
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 2940210 |
|---|---|
| Approval Agency | cULus, EAC, UR |
| Load Current | 100 mA |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Screw Terminal |
| Voltage - Input | 230 VAC |
| Voltage - Load [Max] | 48 V |
| Voltage - Load [Min] | 3 V |
SSR RELAY SPST-NO 100MA 3-48V
| Part | Voltage - Load [Max] | Voltage - Load [Min] | Output Type | Mounting Type | Voltage - Input | Load Current | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2940210 | 48 V | 3 V | DC | DIN Rail | 230 VAC | 100 mA | Screw Terminal | -20 C | 60 °C | cULus, EAC, UR | Module |
