XQEAWT-H0-0000-00000HBE8-SB01
ActiveNew Energy

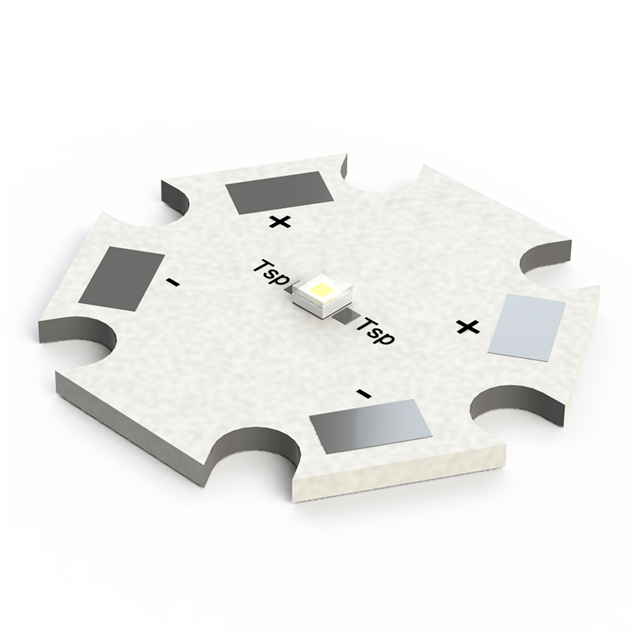

LED MOD XLAMP WHT STARBRD 2700K
Deep-Dive with AI
Search across all available documentation for this part.
XQEAWT-H0-0000-00000HBE8-SB01
ActiveNew Energy
LED MOD XLAMP WHT STARBRD 2700K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | XQEAWT-H0-0000-00000HBE8-SB01 | XQEAWT Series |
|---|---|---|
| CCT (K) | 2700 K | 2700 - 6500 K |
| Color | White, Warm | White, Warm, White, Cool, White, Warm, Neutral, Cool |
| Configuration | Starboard | Starboard |
| CRI (Color Rendering Index) | 80 | 70 - 80 |
| Current - Max [Max] | 1 A | 1 A |
| Current - Test | 350 mA | 350 mA |
| Lens Type | Flat | Flat, Domed |
| Lumens/Watt @ Current - Test | 96 lm/W | 96 - 116 lm/W |
| Luminous Flux @ Current/Temperature | - | 122 - 126 lm |
| Size / Dimension [diameter] | 19.89 mm | 19.89 mm |
| Temperature - Test | 85 °C | 85 °C |
| Type | LED Module | LED Module |
| Viewing Angle | 120 ° | 110 - 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.9 V | 2.9 V |
XQEAWT Series
LED MOD XLAMP WHT STARBRD 2700K
| Part | Current - Test | Temperature - Test | Configuration | Viewing Angle | Lens Type | CCT (K) | Size / Dimension [diameter] | Voltage - Forward (Vf) (Typ) | Color | Current - Max [Max] | CRI (Color Rendering Index) | Type | Lumens/Watt @ Current - Test | Luminous Flux @ Current/Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
New Energy XQEAWT-H0-0000-00000HBE8-SB01 | 350 mA | 85 °C | Starboard | 120 ° | Flat | 2700 K | 19.89 mm | 2.9 V | Warm, White | 1 A | 80 | LED Module | 96 lm/W | |
New Energy XQEAWT-H0-0000-00000HDE8-SB01 | 350 mA | 85 °C | Starboard | 120 ° | Flat | 2700 K | 19.89 mm | 2.9 V | Warm, White | 1 A | 80 | LED Module | ||
New Energy XQEAWT-00-0000-00000BFE1-SB01 | 85 °C | Starboard | 110 ° | Domed | 6500 K | 19.89 mm | 2.9 V | White, Cool, White, Warm | 1 A | 70 | LED Module | 122 lm | ||
New Energy XQEAWT-00-0000-00000HDE5-SB01 | 350 mA | 85 °C | Starboard | 110 ° | Domed | 4000 K | 19.89 mm | 2.9 V | Neutral, White | 1 A | 75 | LED Module | 116 lm/W | |
New Energy XQEAWT-H0-0000-00000LEE5-SB01 | 350 mA | 85 °C | Starboard | 120 ° | Flat | 4000 K | 19.89 mm | 2.9 V | Neutral, White | 1 A | 80 | LED Module | 109 lm/W | |
New Energy XQEAWT-00-0000-00000HBE8-SB01 | 350 mA | 85 °C | Starboard | 110 ° | Domed | 2700 K | 19.89 mm | 2.9 V | Warm, White | 1 A | 80 | LED Module | 109 lm/W | |
New Energy XQEAWT-H0-0000-00000BFE1-SB01 | 350 mA | 85 °C | Starboard | 120 ° | Flat | 6500 K | 19.89 mm | 2.9 V | Cool, White | 1 A | 70 | LED Module | 126 lm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.04 | |
Description
General part information
XQEAWT Series
LED Lighting COBs Engines Modules LED Module XLamp® XQ-E White, Warm Starboard
Documents
Technical documentation and resources
