B250FD

Active

Diotec Semiconductor

Search across all available documentation for this part.

Active

Diotec Semiconductor

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B250FD	B250 Series

Current - Average Rectified (Io)	1 A	1 A
Current - Reverse Leakage @ Vr	5 µA	5 µA
Diode Type	Single Phase	Single Phase
Mounting Type	Through Hole	Through Hole, Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-50 °C	-50 °C
Package / Case	4-EDIP (0.300", 7.62mm)	4-EDIP (0.300", 7.62mm), 4-SMD, Gull Wing
Supplier Device Package	4-DIL	4-DIL, 4-SO-DIL SLIM
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V	1.3 V
Voltage - Peak Reverse (Max) [Max]	600 V	600 V

Part	Current - Reverse Leakage @ Vr	Mounting Type	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io)	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]	Diode Type	Package / Case
Diotec Semiconductor B250FD	5 µA	Through Hole	Standard	150 °C	-50 °C	1.3 V	1 A	4-DIL	600 V	Single Phase	4-EDIP (0.300", 7.62mm)
Diotec Semiconductor B250FS	5 µA	Surface Mount	Standard	150 °C	-50 °C	1.3 V	1 A	4-SO-DIL SLIM	600 V	Single Phase	4-SMD, Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.23

General part information

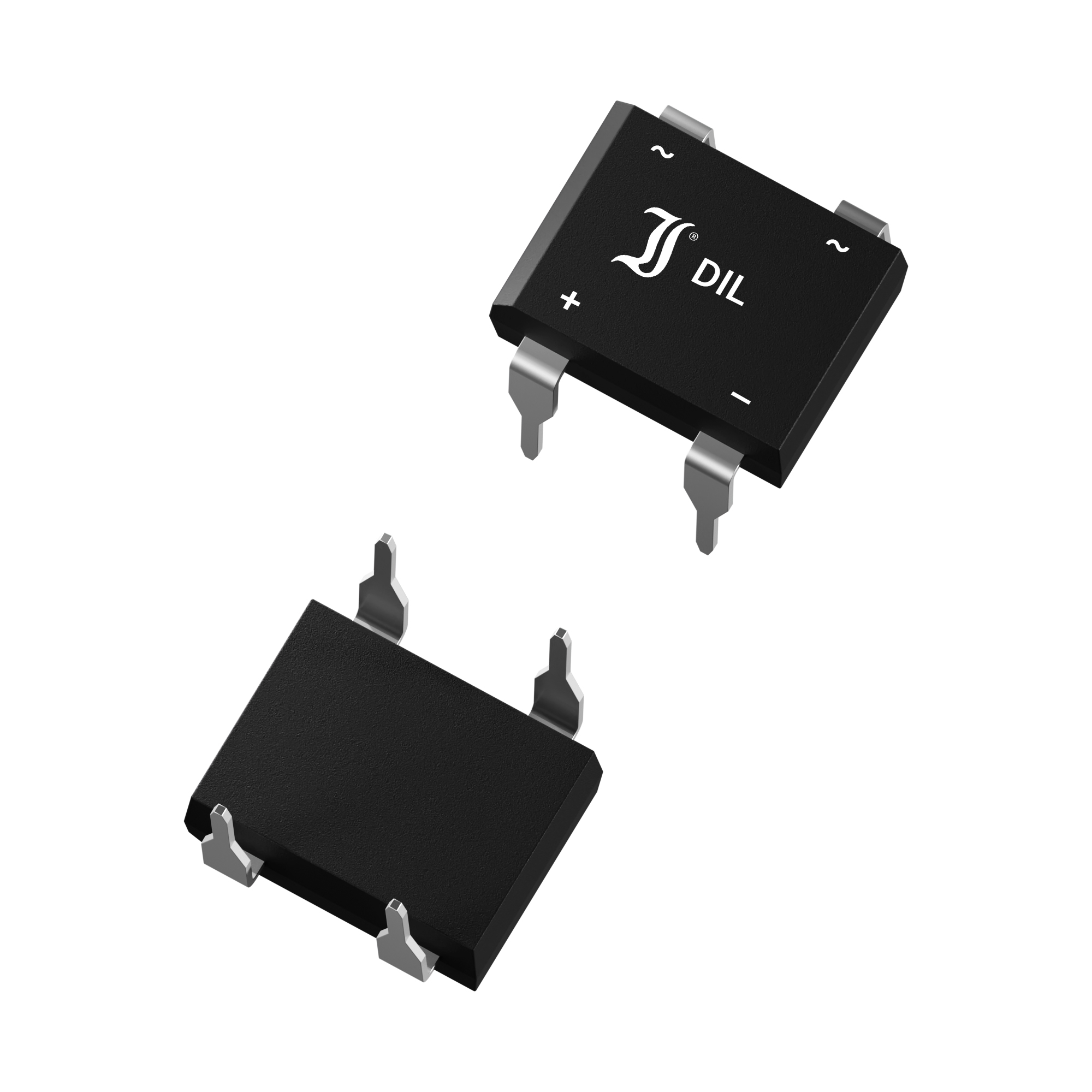

Bridge Rectifier Single Phase Standard 600 V Through Hole 4-DIL
