Description
General part information

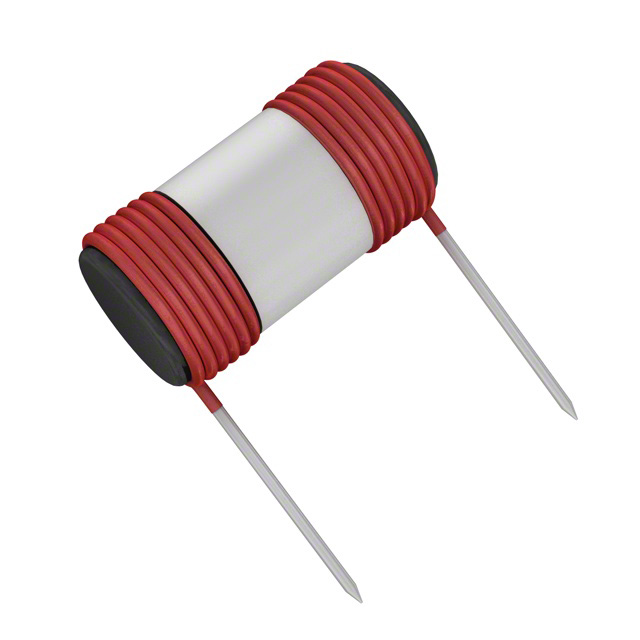

10HC-10
10 µH Unshielded Drum Core, Wirewound Inductor 10 A 12mOhm Max Radial, Horizontal Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | 10HC-10 |
|---|---|
| Current - Saturation (Isat) | 17 A |
| Current Rating | 10 A |
| DC Resistance (DCR) (Max) | 12 mOhm |
| Inductance | 10 µH |
| Inductance Frequency - Test | 1 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Shielding | Unshielded |
| Size / Dimension Diameter | 1.375 in |
| Size / Dimension Length | 0.687 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
