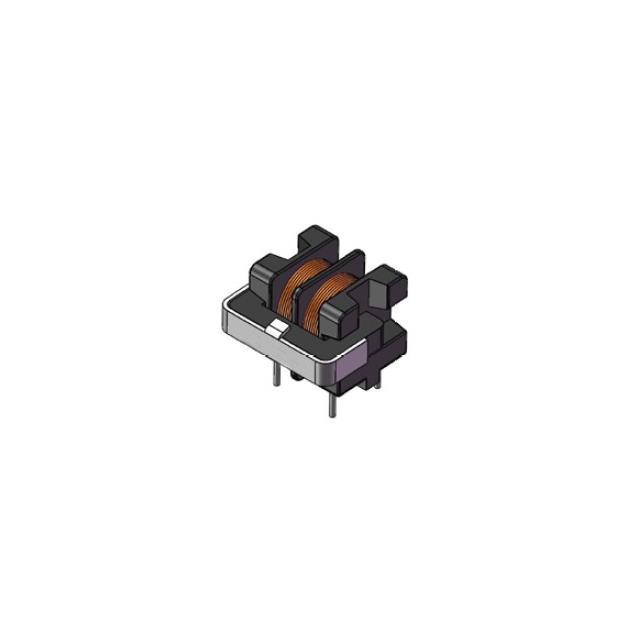

ECMT1V2017H-2R0-R
ActiveEaton - Electronics Division
CMC 2MH 1.5A 2LN TH
ECMT1V2017H-2R0-R
ActiveEaton - Electronics Division
CMC 2MH 1.5A 2LN TH
Description
General part information
ECMT1V2017H-2R0-R
2 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 80mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | ECMT1V2017H-2R0-R |
|---|---|
| Current Rating (Max) | 1.5 A |
| DC Resistance (DCR) (Max) | 80 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.669 in |
| Inductance | 2 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Vertical |
| Package Leads | 4 Leads |
| Package Name | Vertical |
| Size / Dimension Length | 0.768 in |
| Size / Dimension Width | 0.768 in |
| Voltage Rating - AC | 250 V |
