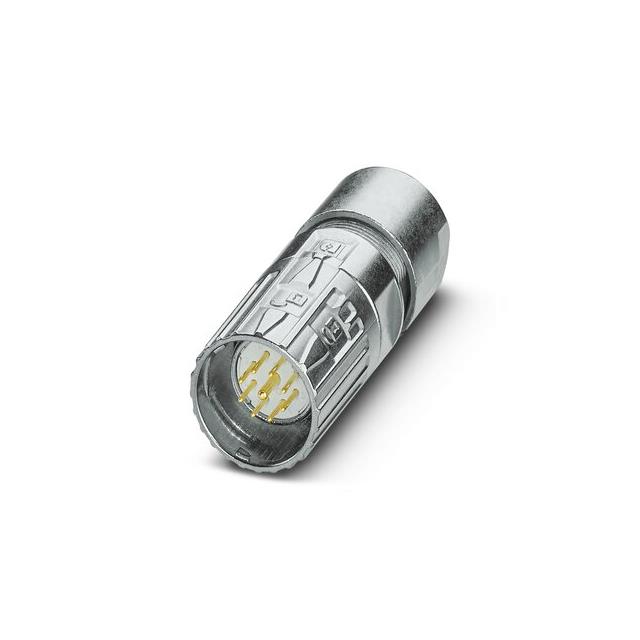

Specification	1629171

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Threaded
Features	Backshell
Housing Color	Silver
Ingress Protection Description	Dust Tight, Water Resistant, Waterproof
Ingress Protection IP Rating	IP69K, IP68, IP66
Insert Material	Polyamide, Nylon 6/6, PA66
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions (Normal)	8
Number of Positions (Power)	1
Number of Positions (Total)	9
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Primary Material	Metal
Shell Material	Gadolinium-Zinc
Shell Size - Insert	M23-9
Shielding	Shielded
Type	For Male Pins
