CONN PLUG FMALE XLR 4POS SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AAA4FBAUZ
ActiveSwitchcraft Inc.
CONN PLUG FMALE XLR 4POS SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AAA4FBAUZ | AAA4FB Series |
|---|---|---|
| Applications | Audio, Industrial, Instrumentation, Medical | Audio, Industrial, Instrumentation, Medical, Audio, Instrumentation |
| Backshell Material, Plating | Chrome, Zinc | Chrome, Zinc |
| Cable Opening | - | 0.15 in |
| Cable Opening | - | 3.81 mm |
| Cable Opening | - | 7.24 mm |
| Cable Opening | - | 0.285 in |
| Cable Opening [diameter] | 2.54 mm, 5.59 mm | 2.54 - 5.59 mm |
| Cable Opening [diameter] | 0.1 in, 0.22 in | 0.1 - 0.22 in |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Silver, Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 10 A | 10 A |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Backshell, Strain Relief, Ground, Cable Clamp | Backshell, Strain Relief, Ground, Cable Clamp |
| Ingress Protection | - | IP66 |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Operating Temperature | - | 65 °C |
| Operating Temperature | - | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Zinc Alloy | Zinc Alloy |
| Shell Size - Insert | XLR | XLR |
| Shielding | Shielded | Shielded |
| Voltage Rating | 125 VAC | 125 VAC |
AAA4FB Series

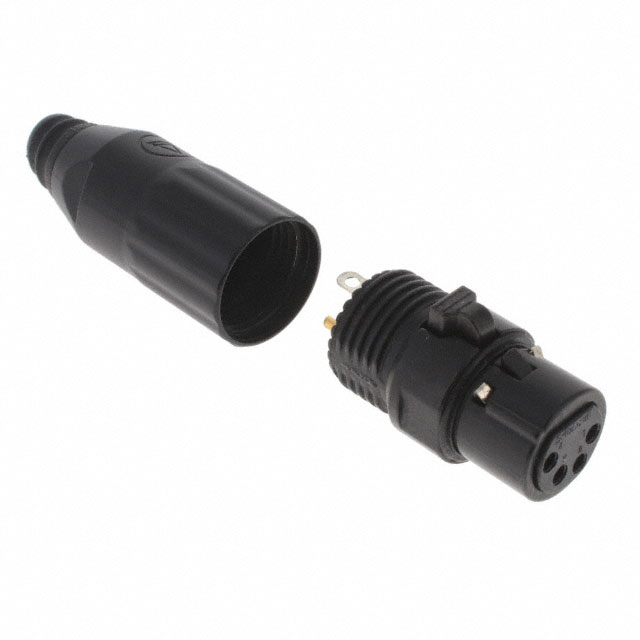

CONN PLUG FMALE XLR 4POS SOLDER
| Part | Shell Finish | Contact Material | Fastening Type | Shell Material | Mounting Type | Current Rating (Amps) | Orientation | Shell Size - Insert | Insert Material | Shielding | Cable Opening [diameter] | Cable Opening [diameter] | Voltage Rating | Number of Positions | Features | Contact Finish - Mating | Backshell Material, Plating | Applications | Connector Type | Color | Primary Material | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. AAA4FBZ | Chrome | Copper Alloy | Latch Lock | Zinc Alloy | Free Hanging (In-Line) | 10 A | Keyed | XLR | Thermoplastic | Shielded | 2.54 mm, 5.59 mm | 0.1 in, 0.22 in | 125 VAC | 4 | Backshell, Cable Clamp, Ground, Strain Relief | Silver | Chrome, Zinc | Audio, Industrial, Instrumentation, Medical | Female Sockets, Plug | Black | Metal | |||||||
Switchcraft Inc. AAA4FBAUZ | Chrome | Copper Alloy | Latch Lock | Zinc Alloy | Free Hanging (In-Line) | 10 A | Keyed | XLR | Thermoplastic | Shielded | 2.54 mm, 5.59 mm | 0.1 in, 0.22 in | 125 VAC | 4 | Backshell, Cable Clamp, Ground, Strain Relief | Gold | Chrome, Zinc | Audio, Industrial, Instrumentation, Medical | Female Sockets, Plug | Black | Metal | |||||||
Switchcraft Inc. AAA4FBAUZH | Chrome | Copper Alloy | Latch Lock | Zinc Alloy | Free Hanging (In-Line) | Keyed | XLR | Thermoplastic | Shielded | 4 | Backshell, Cable Clamp, Ground, Strain Relief | Gold | Chrome, Zinc | Audio, Instrumentation | Female Sockets, Plug | Black | Metal | 0.15 in | 3.81 mm | 7.24 mm | 0.285 in | IP66 | 65 °C | -40 °C | ||||
Switchcraft Inc. AAA4FBZH | Chrome | Copper Alloy | Latch Lock | Zinc Alloy | Free Hanging (In-Line) | Keyed | XLR | Thermoplastic | Shielded | 4 | Backshell, Cable Clamp, Ground, Strain Relief | Silver | Chrome, Zinc | Audio, Instrumentation | Female Sockets, Plug | Black | Metal | 0.15 in | 3.81 mm | 7.24 mm | 0.285 in | IP66 | 65 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.27 | |
| 10 | $ 10.97 | |||
| 25 | $ 9.92 | |||
| 50 | $ 9.21 | |||
| 100 | $ 8.56 | |||
| 300 | $ 7.66 | |||
| 500 | $ 7.28 | |||
| 1000 | $ 6.82 | |||
Description
General part information
AAA4FB Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
Documents
Technical documentation and resources
