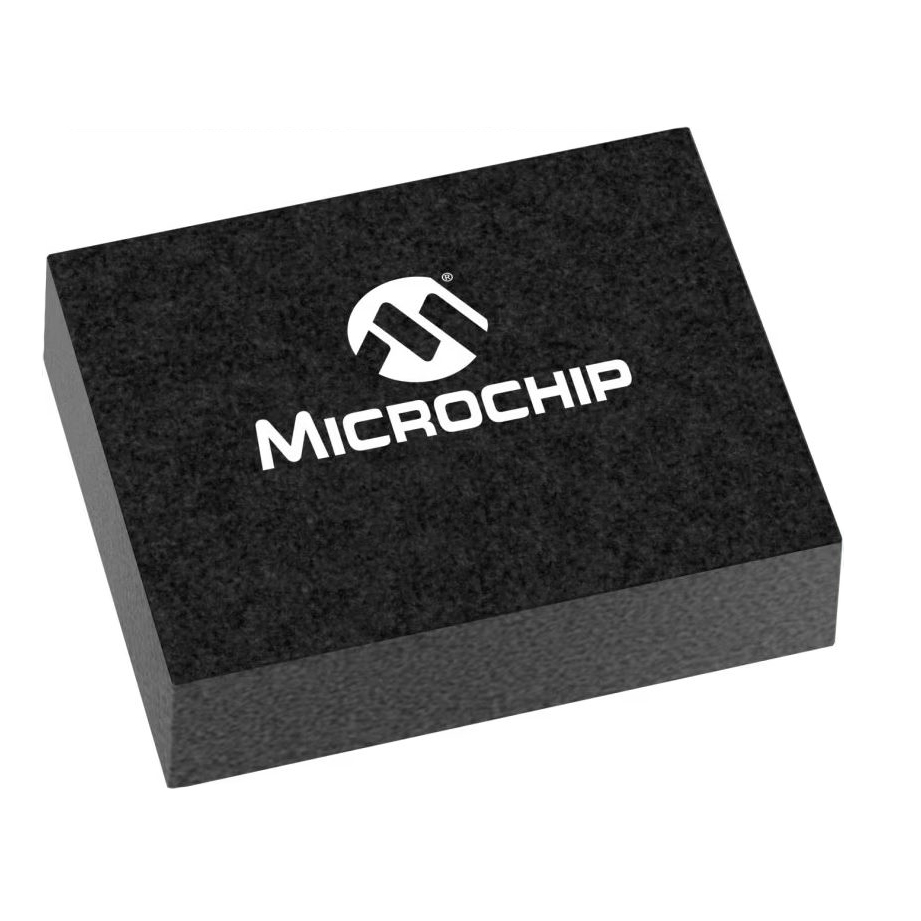

DSC1525JL2A-25M00000
ActiveMicrochip Technology
STANDARD CLOCK OSCILLATORS MEMS OSC, LVCMOS, 25MHZ, 25PPM, 1.8V, -40 TO 105C, 2.5 X 2.0MM
DSC1525JL2A-25M00000
ActiveMicrochip Technology
STANDARD CLOCK OSCILLATORS MEMS OSC, LVCMOS, 25MHZ, 25PPM, 1.8V, -40 TO 105C, 2.5 X 2.0MM
Description
General part information
DSC1525JL2A-25M00000
25 MHz XO (Standard) LVCMOS Oscillator 1.8V Enable/Disable 4-VLGA
Technical Specifications
Parameters and characteristics for this part
| Specification | DSC1525JL2A-25M00000 |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Disable) (Max) | 7.8 mA |
| Current - Supply (Max) | 7.5 mA |
| Frequency | 25 MHz |
| Frequency Stability | 25 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Package / Case | 4-VLGA |
| Package Length | 2.5 mm |
| Package Name | 4-VLGA |
| Package Width | 2 mm |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 1.8 V |
