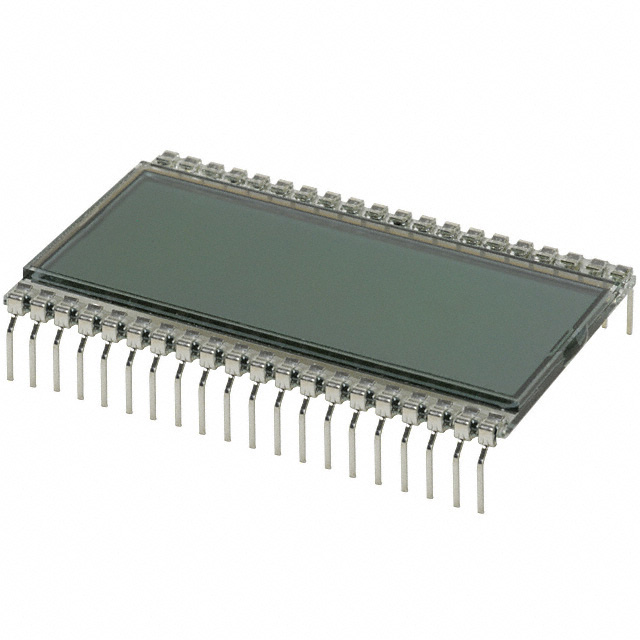

LCD-S3X1C50TR/B

Active

Lumex Opto/Components Inc.

LCD MOD 3.5DIG 3.5 X 1 REFLECTIV

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 3.5DIG 3.5 X 1 REFLECTIV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 50.80mm x 30.48mm x 2.80mm

Technical documentation and resources

No documents available

Part	Display Mode	Display Format [x]	Display Format [y]	Backlight	Character Format	Character Size [y]	Character Size [z]	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Characters	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Background Color	Viewing Area [x]	Viewing Area [y]
Lumex Opto/Components Inc. LCD-S3X1C50TR/A	Reflective	3.5	1	Without Backlight	7-Segment	9.14 mm	12.7 mm	TN - Twisted Nematic	5 V	3 V	3.5	50.8 mm	30.48 mm	2.8 mm	Gray	45.72 mm	16.51 mm
Lumex Opto/Components Inc. LCD-S3X1C50TR/B	Reflective	3.5	1	Without Backlight	7-Segment	7.62 mm	12.7 mm	TN - Twisted Nematic	5 V	3 V	3.5	50.8 mm	30.48 mm	2.8 mm	Gray	45.72 mm	16.51 mm
Lumex Opto/Components Inc. LCD-S3X1C50TR/C
