794957-1
ActiveTE Connectivity AMP Connectors

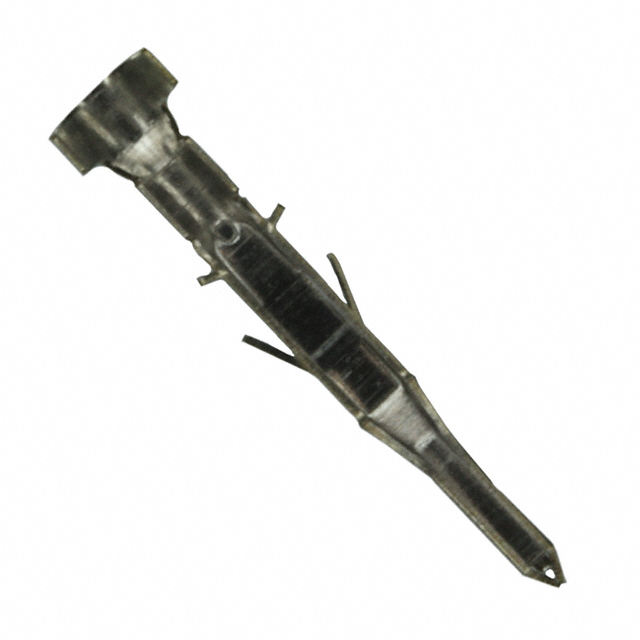

CONN PIN 22-26AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794957-1
ActiveTE Connectivity AMP Connectors
CONN PIN 22-26AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794957-1 | 794957 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | - | 0.76 Ám |
| Contact Finish Thickness | - | 30 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Pin | Pin |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 22 AWG | 22 AWG |
794957 Series
CONN PIN 22-26AWG CRIMP TIN
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish | Contact Termination | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794957-3 | 22 AWG | 26 AWG | Tin | Crimp | Pin | ||
TE Connectivity AMP Connectors 794957-1 | 22 AWG | 26 AWG | Tin | Crimp | Pin | ||
TE Connectivity AMP Connectors 794957-4 | 22 AWG | 26 AWG | Gold | Crimp | Pin | 0.76 Ám | 30 Áin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.04 | |||
| 25 | $ 0.04 | |||
| 50 | $ 0.04 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.03 | |||
| 2500 | $ 0.03 | |||
| Tape & Reel (TR) | 5000 | $ 0.02 | ||
| 10000 | $ 0.02 | |||
| 25000 | $ 0.02 | |||
| 50000 | $ 0.02 | |||
Description
General part information
794957 Series
Pin Contact Tin 22-26 AWG Crimp
