M3BYK-4060K
Active3M
IDC CABLE - MSR40K/MC40F/MPD40K
Deep-Dive with AI
Search across all available documentation for this part.
M3BYK-4060K
Active3M
IDC CABLE - MSR40K/MC40F/MPD40K
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M3BYK-4060K | M3BYK Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Multiple, Twisted Pair (Flat) | Multiple, Twisted Pair (Flat), Ribbon, Multiple |
| Connector Type | Socket to Plug | Socket to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Flange, Strain Relief (Plug), Polarizing Key, Strain Relief (Socket) | Flange, Strain Relief (Plug), Polarizing Key, Strain Relief (Socket) |
| Length | 1.52 m | 1.52 - 508 m |
| Length | 5 ' | 1.67 - 5 ' |
| Length | - | 1.02 - 914.4 mm |
| Length | - | 1.5 - 3.34 ft |
| Length | - | 6 " |
| Length | - | 0.5 ' |
| Number of Positions | 40 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M3BYK Series
IDC CABLE - MSR40K/MC40F/MPD40K
| Part | Color | Pitch - Connector | Pitch - Connector | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Shielding | Number of Positions | Pitch - Cable | Pitch - Cable | Cable Termination | Length | Length | Connector Type | Features | Length [x] | Length [x] | Length | Length | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | 2 | 0.76 Ám | 30 Áin | Gold | Unshielded | 40 | 0.05 " | 1.27 mm | IDC | 1.52 m | 5 ' | Socket to Plug | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | ||||||
Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | 2 | 0.76 Ám | 30 Áin | Gold | Unshielded | 60 | 0.05 " | 1.27 mm | IDC | 1.52 m | 5 ' | Socket to Plug | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | ||||||
Multiple, Ribbon | 0.1 in | 2.54 mm | 2 | 0.76 Ám | 30 Áin | Gold | Unshielded | 10 | 0.05 " | 1.27 mm | IDC | Socket to Plug | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | 457.2 mm | 1.5 ft | ||||||
Multiple, Ribbon | 0.1 in | 2.54 mm | 2 | 0.76 Ám | 30 Áin | Gold | Unshielded | 0.05 " | 1.27 mm | IDC | 152.4 mm | Socket to Plug | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | 6 " | 0.5 ' | 16 | |||||
Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | 2 | 0.76 Ám | 30 Áin | Gold | Unshielded | 40 | 0.05 " | 1.27 mm | IDC | 508 mm | 1.67 ft | Socket to Plug | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | ||||||
0.1 in | 2.54 mm | 2 | 0.76 Ám | 30 Áin | Gold | Unshielded | 20 | 0.05 " | 1.27 mm | IDC | 152.4 mm | Socket to Plug | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | 6 " | 0.5 ' | ||||||
0.1 in | 2.54 mm | 2 | 0.76 Ám | 30 Áin | Gold | Unshielded | 26 | 0.05 " | 1.27 mm | IDC | Socket to Plug | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | 914.4 mm | 3 ft | |||||||
0.1 in | 2.54 mm | 2 | 0.76 Ám | 30 Áin | Gold | Unshielded | 34 | 0.05 " | 1.27 mm | IDC | Socket to Plug | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | 914.4 mm | 3 ft | |||||||
Multiple, Twisted Pair (Flat) | 0.1 in | 2.54 mm | 2 | 0.76 Ám | 30 Áin | Gold | Unshielded | 0.05 " | 1.27 mm | IDC | 508 mm | 1.67 ft | Socket to Plug | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | 16 | ||||||
0.1 in | 2.54 mm | 2 | 0.76 Ám | 30 Áin | Gold | Unshielded | 20 | 0.05 " | 1.27 mm | IDC | Socket to Plug | Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket) | 457.2 mm | 1.5 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 54.25 | |
| 10 | $ 42.03 | |||
| 25 | $ 38.15 | |||
| 50 | $ 35.54 | |||
| 100 | $ 33.17 | |||
| 250 | $ 30.38 | |||
Description
General part information
M3BYK Series

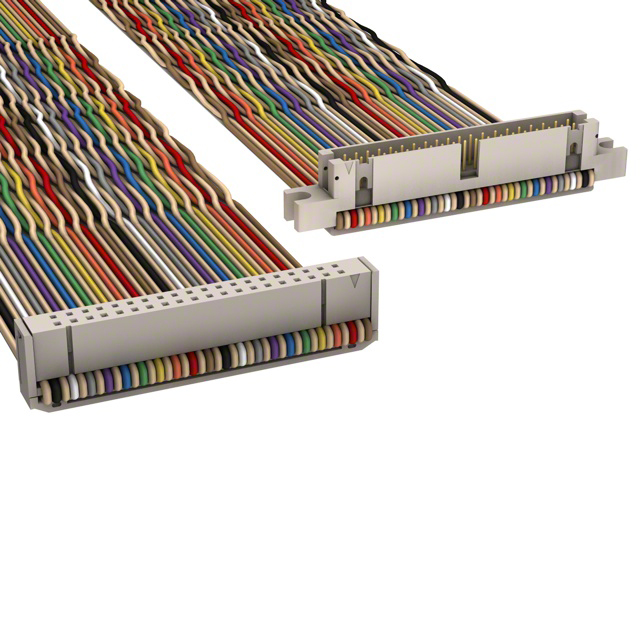

40 Position Cable Assembly Rectangular Socket to Plug 5.00' (1.52m)
