SCS-40320
ActiveSignal Transformer

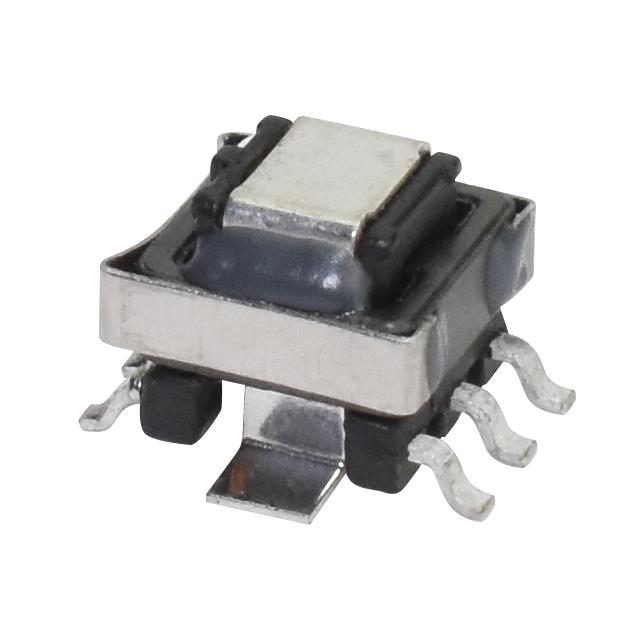

CURR SENSE XFMR 40:1 10A SMD
SCS-40320
ActiveSignal Transformer
CURR SENSE XFMR 40:1 10A SMD
Description
General part information
SCS-40320
10 A 40:1 Current Sense Transformer 50kHz ~ 1MHz 700mOhm Primary, 1.14Ohm Secondary Max 320 µH Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | SCS-40320 |
|---|---|
| Current Rating | 10 A |
| DC Resistance (DCR) (Primary) | 700 mOhm |
| DC Resistance (DCR) (Secondary Max) | 1.14 Ohm |
| DC Resistance Type | Secondary Max, Primary |
| Frequency Range (Max) | 1 MHz |
| Frequency Range (Min) | 50 kHz |
| Height - Seated (Max) | 0.217 in |
| Inductance | 320 µH |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Turns Ratio - Primary | 40 |
| Turns Ratio - Secondary | 1 |
| Type | Invasive |
