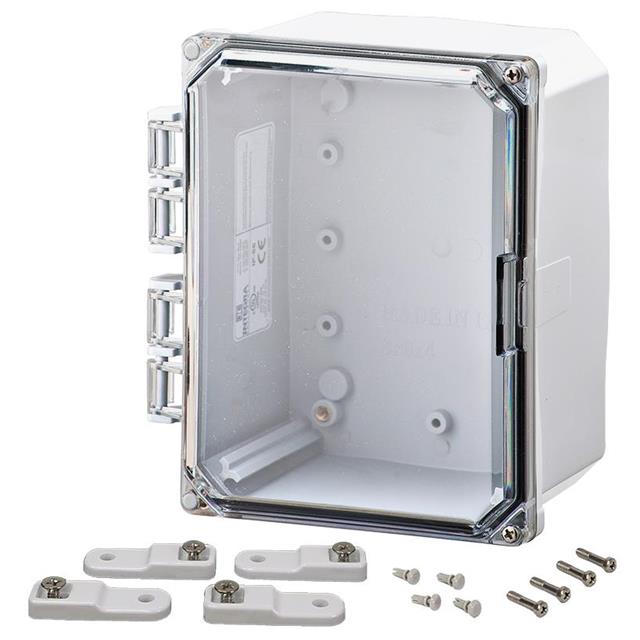

H8064HC-WHT
ActiveIntegra Enclosures
ENCLOSURE PLAS 8.44"L X 6.44"W
H8064HC-WHT
ActiveIntegra Enclosures
ENCLOSURE PLAS 8.44"L X 6.44"W
Description
General part information
H8064HC-WHT
Enclosure Plastic, Polycarbonate (PC) White, Clear Cover/Door Hinged Door, Lid 8.440" L x 6.440" W (214.38mm x 163.58mm) X 5.350" (135.89mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | H8064HC-WHT |
|---|---|
| Area (L x W) | 48 in², 54.3 in² |
| Color | White, Clear Cover/Door |
| Container Type | Enclosure |
| Design | Hinged Door, Cover Included, Lid |
| Features | Mounting Brackets |
| Height | 4 ", 5.35 in |
| Material | Polycarbonate (PC), Plastic |
| Material Flammability Rating | UL94 V-0, UL94 5VA |
| Material Flammability Rating - Code | UL94 |
| Material Flammability Rating - Level | 5 |
| Ratings | 1, 3S, NEMA, 2, 3R, 3, 4X, 4, 12, 13, IP66, NEMA 4X |
| Size / Dimension Length | 8 in, 8.44 in |
| Size / Dimension Width | 6 in, 6.44 in |
| Thickness | 0.15 in |
