M1KXK-3436R

Active

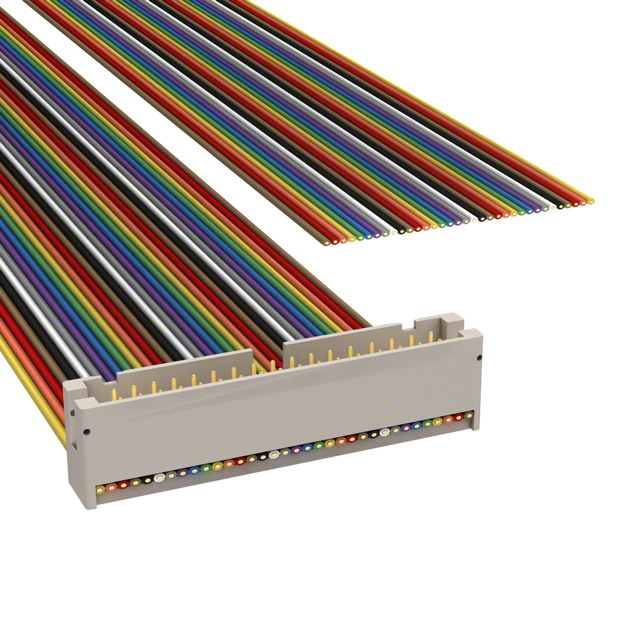

IDC CABLE - MPK34K/MC34M/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide 3302 Series +1

M1KXK-3436R

Active

IDC CABLE - MPK34K/MC34M/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide 3302 Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M1KXK-3436R	M1KXK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Ribbon, Multiple, Multiple, Twisted Pair (Flat)
Connector Type	Plug to Cable	Plug to Cable
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key	Polarizing Key
Length [x]	3 ft	3 - 3.34 ft
Length [x]	914.4 mm	1.02 - 914.4 mm
Number of Positions	34	10 - 64
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M1KXK Series

IDC CABLE - MPK64K/MC64M/X

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Shielding	Number of Rows	Pitch - Connector	Pitch - Connector	Number of Positions	Features	Connector Type	Color	Number of Positions
3M M1KXK-6436R	Gold	0.76 Ám	30 Áin	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	64	Polarizing Key	Plug to Cable	Multiple, Ribbon
3M M1KXK-4036R	Gold	0.76 Ám	30 Áin	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	40	Polarizing Key	Plug to Cable	Multiple, Ribbon
3M M1KXK-6040K	Gold	0.76 Ám	30 Áin	IDC	3.34 ft	1.02 m	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	60	Polarizing Key	Plug to Cable	Multiple, Twisted Pair (Flat)
3M M1KXK-4036J	Gold	0.76 Ám	30 Áin	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	40	Polarizing Key	Plug to Cable
3M M1KXK-1636R	Gold	0.76 Ám	30 Áin	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm		Polarizing Key	Plug to Cable	Multiple, Ribbon	16
3M M1KXK-1436R	Gold	0.76 Ám	30 Áin	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	14	Polarizing Key	Plug to Cable	Multiple, Ribbon
3M M1KXK-2436R	Gold	0.76 Ám	30 Áin	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	24	Polarizing Key	Plug to Cable	Multiple, Ribbon
3M M1KXK-3436R	Gold	0.76 Ám	30 Áin	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	34	Polarizing Key	Plug to Cable	Multiple, Ribbon
3M M1KXK-5040K	Gold	0.76 Ám	30 Áin	IDC	3.34 ft	1.02 m	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	50	Polarizing Key	Plug to Cable	Multiple, Twisted Pair (Flat)
3M M1KXK-2036R	Gold	0.76 Ám	30 Áin	IDC	3 ft	914.4 mm	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	20	Polarizing Key	Plug to Cable	Multiple, Ribbon

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.18
		10	$ 19.42
		25	$ 17.58
		50	$ 16.34
		100	$ 15.22
		250	$ 13.90
		500	$ 13.01

Description

General part information

M1KXK Series

34 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

3302 Series

Datasheet
