SL228M016HJHRR
ActiveNextGen Components
CAP ALUM 2200UF 20% 16V 10K HRS
SL228M016HJHRR
ActiveNextGen Components
CAP ALUM 2200UF 20% 16V 10K HRS
Description
General part information
SL228M016HJHRR

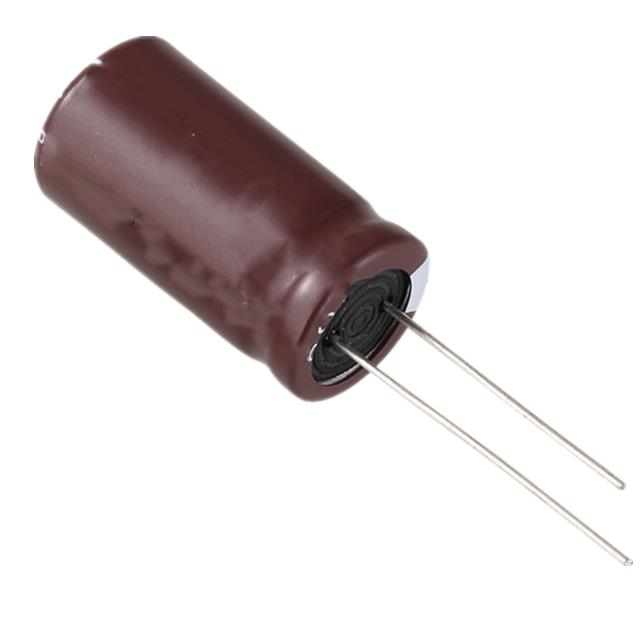

2200 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | SL228M016HJHRR |
|---|---|
| Applications | General Purpose |
| Capacitance | 2200 ĄF |
| Height - Seated (Max) | 0.866 in |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197 in |
| Lifetime | 10000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.512 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
