Description
General part information

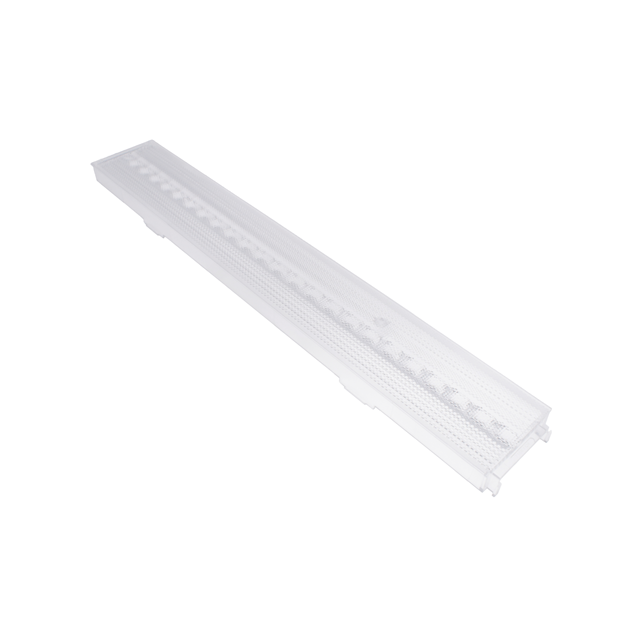

C17168_LINNEA-GC2-O
Lens Clear 30° x 90° Elliptical/Oval Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | C17168_LINNEA-GC2-O |
|---|---|
| Color | Clear |
| For Use With/Related Manufacturer | Samsung, Nichia, Tridonic, Lumileds, Cree, Osram |
| Lens Length | 283.6 mm |
| Lens Style | Rectangle, Flat Top |
| Lens Width | 43 mm |
| Material | Acrylic |
| Mounting Type | Snap-In |
| Number of LEDs | 1 |
| Optical Pattern | Oval, Elliptical |
| Type | Lens |
| Viewing Angle (Horizontal) | 30 ° |
| Viewing Angle (Vertical) | 90 ° |
