E6240
ObsoleteMicrochip Technology
KIT EVAL/DEV USING QT60240-ISG
E6240
ObsoleteMicrochip Technology
KIT EVAL/DEV USING QT60240-ISG
Description
General part information
E6240

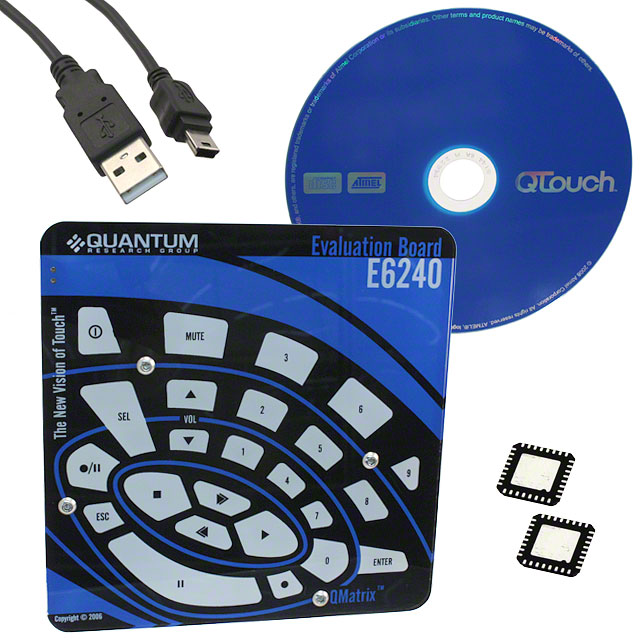

QT60160, QT60240 Quantum, QMatrix™ Touch, Capacitive Sensor Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | E6240 |
|---|---|
| Contents | Board, Cable |
| Embedded | No |
| Interface | USB, I2C |
| Sensing Range | 16 / 24 Buttons/Keys, 24 Buttons/Keys, 16 |
| Sensing Range - Buttons/Keys | 16 |
| Sensing Range (Max) | 24 |
| Sensing Range (Min) | 16 |
| Sensor Type | Touch, Capacitive |
| Supplied Contents | Board(s), Cable(s) |
| Utilized IC / Part | QT60160, QT60240 |
| Voltage - Supply | 5 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
