RG405-NM-BNC(QTY:60cm)
ActiveMcGill Microwave Systems
RG405 CABLE ASSY 60 CM N MALE TO
RG405-NM-BNC(QTY:60cm)
ActiveMcGill Microwave Systems
RG405 CABLE ASSY 60 CM N MALE TO
Description
General part information
RG405-NM-BNC(QTY:60cm)

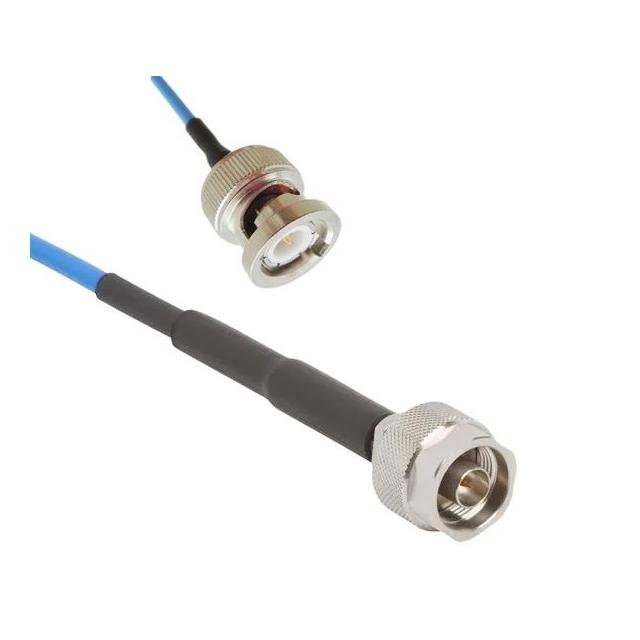

Cable Assembly Coaxial N-Type to BNC RG-405 23.62" (600.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | RG405-NM-BNC(QTY:60cm) |
|---|---|
| 1st Connector | N-Type Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG |
| Cable Type Size | 405 |
| Color | Blue |
| Frequency - Max | 3 GHz |
| Length | 23.62 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Style | BNC, N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
