Description
General part information
T495D336K016AH4095

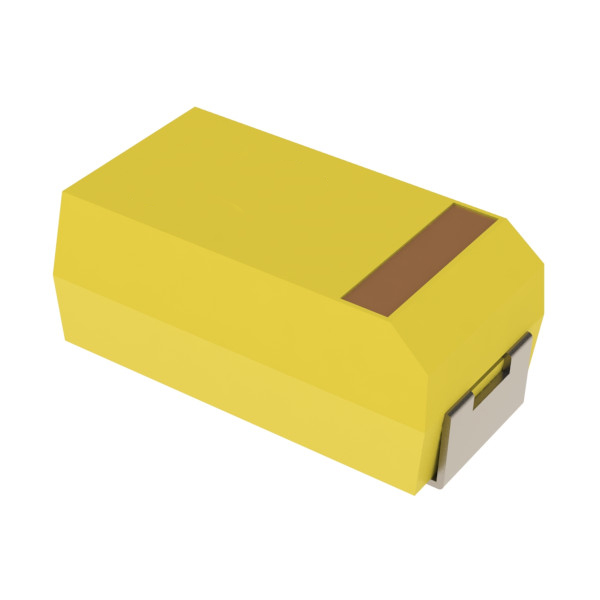

33 µF Molded Tantalum Capacitors 16 V 2917 (7343 Metric) 250mOhm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | T495D336K016AH4095 |
|---|---|
| Capacitance | 33 µF |
| ESR (Equivalent Series Resistance) | 250 mOhm |
| Features | High Reliability |
| Height - Seated (Max) | 0.122 in |
| Lifetime | 2000 Hrs |
| Manufacturer Size Code | D |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2917 (7343 Metric) |
| Ratings | COTS |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 10 % |
| Type | Molded |
| Voltage - Rated | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
