OED-EL-1L2

Active

Lumex Opto/Components Inc.

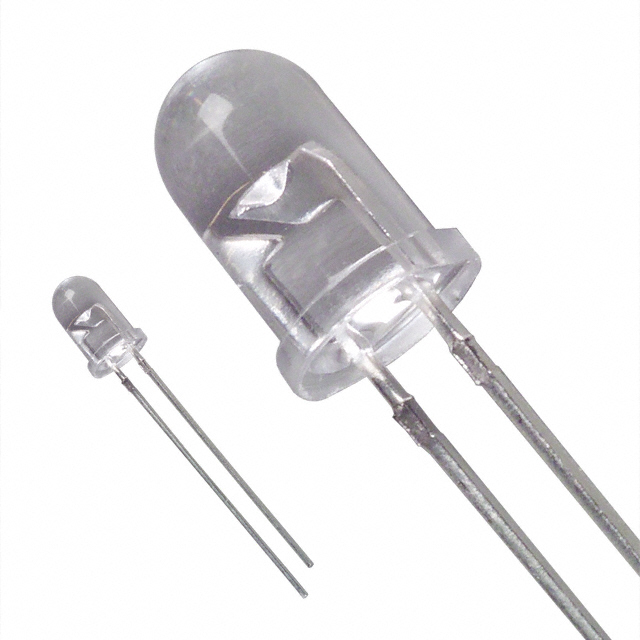

EMITTER IR 940NM 100MA RADIAL

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

EMITTER IR 940NM 100MA RADIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	OED-EL-1L2	OED-EL-1 Series

Current - DC Forward (If) (Max) [Max]	100 mA	100 mA
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	85 C	85 C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Top View	Top View
Package / Case	Radial	Radial
Radiant Intensity (Ie) Min @ If	-	7.8 mW/sr
Radiant Intensity (Ie) Min @ If [Min]	60 mW/sr	60 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	60 °	20 - 60 °
Wavelength	940 nm	940 nm

EMITTER IR 940NM 100MA RADIAL

Part	Type	Current - DC Forward (If) (Max) [Max]	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Viewing Angle	Mounting Type	Package / Case	Radiant Intensity (Ie) Min @ If
Lumex Opto/Components Inc. OED-EL-1L2	Infrared (IR)	100 mA	Top View	85 C	-25 °C	60 mW/sr	940 nm	60 °	Through Hole	Radial
Lumex Opto/Components Inc. OED-EL-1L1	Infrared (IR)	100 mA	Top View	85 C	-25 °C		940 nm	20 °	Through Hole	Radial	7.8 mW/sr

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.2V 100mA 60mW/sr @ 100mA 60° Radial
