ZUSAV75MD022
ActiveUSA Industrials

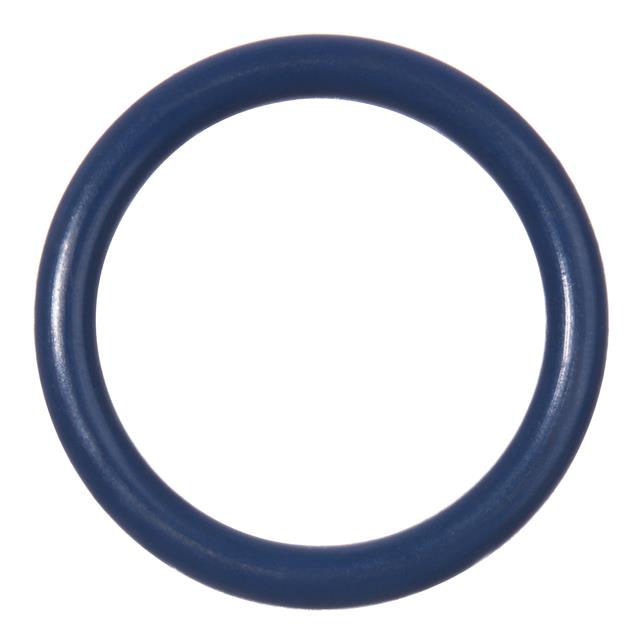

MTL. DET. FDA FKM ORING-022 PK10
ZUSAV75MD022
ActiveUSA Industrials
MTL. DET. FDA FKM ORING-022 PK10
Description
General part information
ZUSAV75MD022
MTL. DET. FDA FKM ORING-022 PK10
Technical Specifications
Parameters and characteristics for this part
| Specification | ZUSAV75MD022 |
|---|---|
| Color | Blue |
| Cross Section | 0.0625 in |
| Cross Section Shape | Round |
| Dash Number (Code) | -022 |
| Diameter - Inside (Maximum) | 1 in |
| Diameter - Inside (Typical) | 0.989 in |
| Diameter - Outside | 1.129 in |
| Diameter - Outside (Nominal) | 1.125 in |
| Hardness (Shore A) | 75 |
| Material | FKM |
| Nominal I.D. | 1 in |
| Operating Temperature (Max) | 204 °C |
| Operating Temperature (Min) | -26 °C |
| Width | 0.07 in |
